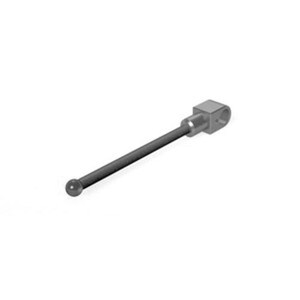

626103-0312-040 ZEISS, Ø3.0 mm M3 XXT, 1/4 star stylus with clamping adapter, Length: 40.0 mm

Brand: ZEISS
ID#: 626103-0312-040-ZSS
|MFGID: 626103-0312-040
Your Price:
$164.90
QuantityPrice
Same day shipment
Request Info
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

Description

M3 XXT, 1/4 star stylus with clamping adapter, Length: 40.0 mm

Specifications

  • Details:Product Type: Stylus

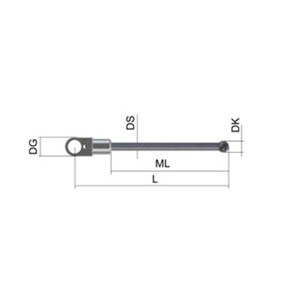

    Connection Type In: M3 XXT
    Ø Sphere (DK): 3.0 mm
    Length (L): 40.0 mm
    Application: Tactile
    Ø Shaft (DS): 2.0 mm
    Ø Body (DG): 5.0 mm
    Measure Length: 31.0 mm
    Stylus Type: Star Stylus
    Stylus Tip: Sphere
    Tip Material: Silicon Nitride
    Stem Material: Carbon Fiber
    Weight: 1

PRODUCT SERIES

ID#Product NamePrice
626103-0302-020-ZSS626103-0302-020 ZEISS, Ø3.0 mm M3 XXT, 1/4 star stylus with clamping adapter, Length: 20.0 mm $155.48
626103-0302-030-ZSS626103-0302-030 ZEISS, Ø3.0 mm M3 XXT, 1/4 star stylus with clamping adapter, Length: 30.0 mm $160.19
626103-0302-040-ZSS626103-0302-040 ZEISS, Ø3.0 mm M3 XXT, 1/4 star stylus with clamping adapter, Length: 40.0 mm $169.62
626103-0312-020-ZSS626103-0312-020 ZEISS, Ø3.0 mm M3 XXT, 1/4 star stylus with clamping adapter, Length: 20.0 mm $179.04
626103-0312-030-ZSS626103-0312-030 ZEISS, Ø3.0 mm M3 XXT, 1/4 star stylus with clamping adapter, Length: 30.0 mm $179.04
626103-0312-040-ZSS626103-0312-040 ZEISS, Ø3.0 mm M3 XXT, 1/4 star stylus with clamping adapter, Length: 40.0 mm $164.90
