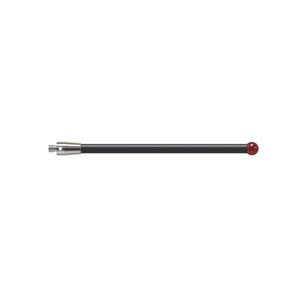

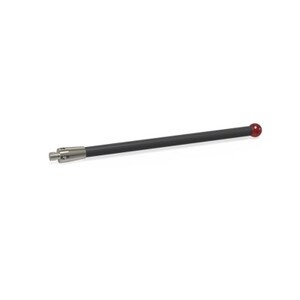

Zeiss Ø5.0 mm M3 XXT, Stylus straight, ruby sphere, ThermoFit® shaft, Length: 50.0 mm
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST
DescriptionM3 XXT, Stylus straight, ruby sphere, ThermoFit® shaft, Length: 50.0 mm

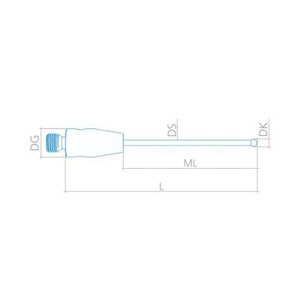

- Details:Product Type: Stylus
Connection Type In: M3 XXT
Ø Sphere (DK): 5.0 mm
Length (L): 50.0 mm
Ø Shaft (DS): 3.5 mm
Ø Body (DG): 5.0 mm
Measure Length: 41.0 mm
Stylus Type: Straight
Stylus Tip: Sphere
Tip Material: Ruby
Stem Material: Carbon Fiber
Spherical styli have the largest field of application because they have the same probing behavior in every direction. They are therefore suitable for all common measuring tasks such as measuring bores and surfaces. The larger the stylus sphere size, the larger the mechanical filter. This means that the profile of your workpiece is smoothened, which is often required in form measurement. The deviation from the ideal sphere shape is usually shown in Grade. ZEISS styli spheres have Grade 5 as standard, but can also be offered in a higher Grade 3 for special requirements. Styli with a straight shaft are the most simple designed styli. The full shaft length can be used as measuring length.
Ruby styli are the standard for almost all applications and are available in a variety of different diameters. Another advantage is that ruby spheres can be produced in very small diameters (from 0.12 mm). On the other hand, ruby has weaknesses at the continuous scanning of certain materials and surfaces. With extremely soft materials, e.g. aluminum, material from the workpiece can be deposited on the ruby surface (material deposit). Very hard and rough surfaces, e.g. castings, on the other hand, cause abrasion of the sphere (material removal). The shape of the sphere changes as a result and loses accuracy. ZEISS ThermoFit stems made of carbon fiber represent an optimum combination of stiffness, weight and thermal expansion. This makes them suitable for particularly demanding measuring tasks.
Depending on the material of the styli and the workpiece, wear of the styli may occur. Therefore, we recommend to check the styli regularly for wear. Also remember to clean the styli or replace them if necessary. ZEISS Styli Cleaning Wipes are available.To learn more about ZEISS styli, book our free stylus eLearning on the ZEISS eLearning platform.
✔ Ruby sphere suitable for general measuring tasks
✔ ZEISS ThermoFit shaft for high stiffness with low weight and low thermal linear expansion
✔ Straight shaft with longer measuring length
✔ Proven ZEISS quality through the use of selected materials
