ZEISS 626103-6180-004 Star element with cone adapter, 4 x DS 1.5

Brand: ZEISS
ID#: 626103-6180-004-ZSS
|MFGID: 626103-6180-004
Your Price:
Same day shipment
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information


Star element with cone adapter, 4 x DS 1.5


  • Details:Product Type: Star Element
    Connection Type In: M3 XXT
    Length (L): 4.7 mm
    Application: Connect
    Ø Shaft (DS): 1.5 mm
    Ø Body (DG): 5.0 mm
    Measure Length: 2.5 mm
    Stylus Type: Star Stylus
    Width (B): 7.9
    Angle: 120.0 °
    Weight: 2

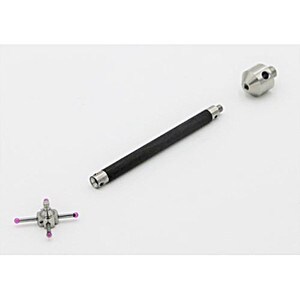

    Star elements with cone adapters allow an extremely flexible composition of star probes. The well thought-out design without interfering fastening screws allows measurement down to the bottom. Even if individual styli are damaged, the entire star stylus does not have to be realigned only the damaged stylus has to be replaced. In combination with an M5 adapter, star styli for M5 systems can also be created.

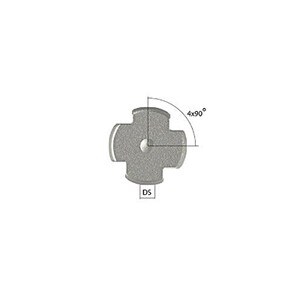

    Star element with cone adapter with 4 x DS: 1.5 (90°), M3 XXT system, titanium, weight: 2.01 g Can be used for styli with shaft diameter 1.5 mm
