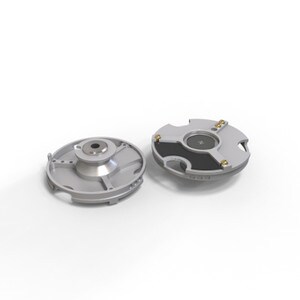

626103-8433-075 ZEISS, 626103-8233-075 Adapter plate VAST XXT TL3, with extension and star element

Specifications

• Details:Product Type: Adapter Plate
  Connection Type In: M3 XXT
  Length (L): 75.0 mm
  Application: Tactile
  Stylus Type: Adapter Plate
  Weight: 6 lbs

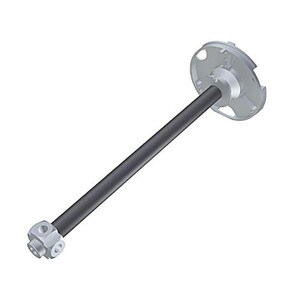

  The adapter plate forms the central interface between the probe head and the stylus system. The stylus system is fixed via an integrated cube. Zeiss CFX extensions can be used for optimization. The Zeiss adapter plate is read out and recognized on the probe head when it is picked up. For a CNC-controlled automatic stylus system change, the adapter plate (including the stylus system) is placed in the XXT probe socket (620161-8510-000) or the XXT single probe soceket (620161-8511-000), which is located on the storage rack (MSR / ProMax). This adapter plate has a fixed ZEISS Reach CFX1 extension with aligned 5-fold cube mount. This enables the setup of extremely lightweight star styli.

  Description: ZSH-28-B-75-5X-TL3-M3 Combinable sensor system: VAST XXT Combinable probe socket: XXT probe socket (620161-8510-000) or XXT single probe socket (620161-8511-000) A maximum weight of 15 g may be suspended from the adapter plate, (adapter plate included). The length of a stylus system may not exceed 150 mm. L=75

  The features of ZEISS measuring machines and the guaranteed machine specifications are only guaranteed when using original ZEISS exchangeable plates. There is a not insignificant negative influence on accuracy and stability if adapter plates from unknown / non-certified manufacturers are used. Check the necessity of performing the DeviceActovator when using a new ZEISS adapter plate. Further information and operating instructions are available at the following link in the Download Center: https://portal.zeiss.com/download-center/softwares/imt
• Specifications:XXT TL3 adapter plate ZSH-28-B-75-5X-TL3-M3 with active ID chip, CFX1 extension and star element
