ZEISS 626107-1070-100 M5, Extension, ZEISS REACH CFX® 3, Length: 70.0 mm

Brand: ZEISS
ID#: 626107-1070-100-ZSS
|MFGID: 626107-1070-100
Your Price:
Same day shipment
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

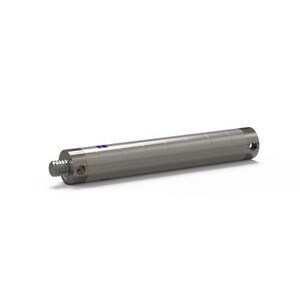

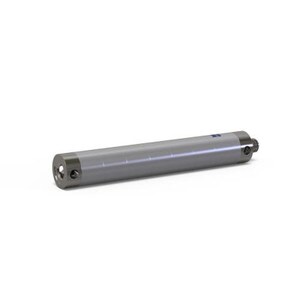

M5, Extension, ZEISS REACH CFX® 3, Length: 70.0 mm


  • Details:Product Type: Extension
    Connection Type In: M5
    Length (L): 70.0 mm
    Application: Extend
    Ø Body (DG): 11.0 mm
    Stylus Type: Extension
    Material: Carbon Fiber
    Connection Type Out: M5
    Accuracy Level: Medium - CFX 3
    Weight: 11

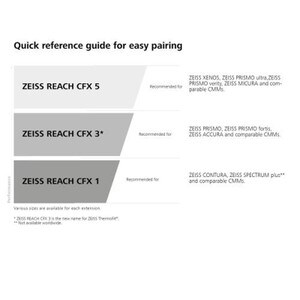

    ZEISS ThermoFit becomes REACH CFX® 3 - new name, same performance. ZEISS REACH CFX® 3 recommended for: ZEISS PRISMO, ZEISS PRISMO fortis, ZEISS ACCURA and comparable CMMs.

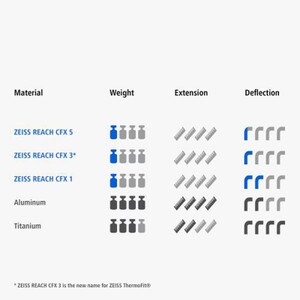

✔ Light weight - build complex stylus systems
✔ Thermally stable - no thermal expansion of the material and associated loss of precision
✔ Statically stiff - maximum stiffness allows faster scanning without loss of precision
✔ Carbon fiber tubes - developed by ZEISS
