ZEISS 626107-1080-105 M5, Extension with cone receiver, ZEISS REACH CFX® 3, Length: 80.0 mm

Brand: ZEISS
ID#: 626107-1080-105-ZSS
|MFGID: 626107-1080-105
Your Price:
$207.31
QuantityPrice
Same day shipment
Request Info
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

Description

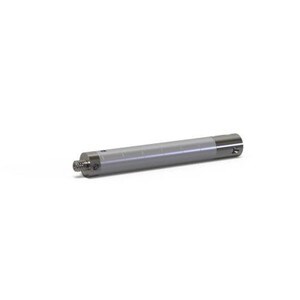

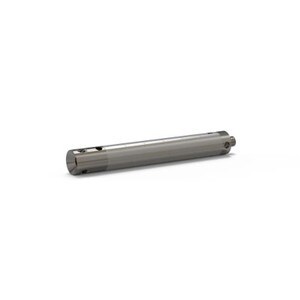

M5, Extension with cone receiver, ZEISS REACH CFX® 3, Length: 80.0 mm

Specifications

  • Details:Product Type: Extension
    Connection Type In: M5
    Length (L): 80.0 mm
    Application: Extend
    Ø Body (DG): 11.0 mm
    Stylus Type: Extension
    Material: Carbon Fiber
    Connection Type Out: Cone Receiver
    Accuracy Level: Medium - CFX 3
    Weight: 15

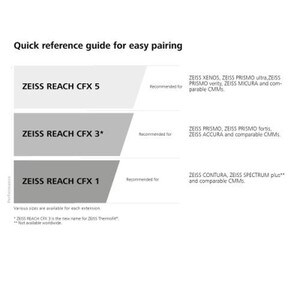

    ZEISS ThermoFit becomes REACH CFX® 3 - new name, same performance. ZEISS REACH CFX® 3 recommended for: ZEISS PRISMO, ZEISS PRISMO fortis, ZEISS ACCURA and comparable CMMs.

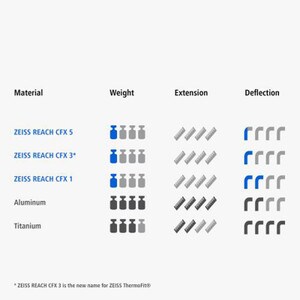

Features


✔ Light weight - build complex stylus systems
✔ Thermally stable - no thermal expansion of the material and associated loss of precision
✔ Statically stiff - maximum stiffness allows faster scanning without loss of precision
✔ Carbon fiber tubes - developed by ZEISS

PRODUCT SERIES

ID#Product NamePrice
626107-1080-105-ZSSZEISS 626107-1080-105 M5, Extension with cone receiver, ZEISS REACH CFX® 3, Length: 80.0 mm $207.31
626107-1100-105-ZSSZEISS 626107-1100-105 M5, Extension with cone receiver, ZEISS REACH CFX® 3, Length: 100.0 mm $216.73
626107-1110-105-ZSSZEISS 626107-1110-105 M5, Extension with cone receiver, ZEISS REACH CFX® 3, Length: 110.0 mm $221.44
626107-1130-105-ZSSZEISS 626107-1130-105 M5, Extension with cone receiver, ZEISS REACH CFX® 3, Length: 130.0 mm $230.87
626107-1160-105-ZSSZEISS 626107-1160-105 M5, Extension with cone receiver, ZEISS REACH CFX® 3, Length: 160.0 mm $245.00
626107-1190-105-ZSSZEISS 626107-1190-105 M5, Extension with cone receiver, ZEISS REACH CFX® 3, Length: 190.0 mm $259.13
626107-1210-105-ZSSZEISS 626107-1210-105 M5, Extension with cone receiver, ZEISS REACH CFX® 3, Length: 210.0 mm $273.27
626107-1260-105-ZSSZEISS 626107-1260-105 M5, Extension with cone receiver, ZEISS REACH CFX® 3, Length: 260.0 mm $296.82
626107-1310-105-ZSSZEISS 626107-1310-105 M5, Extension with cone receiver, ZEISS REACH CFX® 3, Length: 310.0 mm $320.38
626107-1410-105-ZSSZEISS 626107-1410-105 M5, Extension with cone receiver, ZEISS REACH CFX® 3, Length: 410.0 mm $367.50
