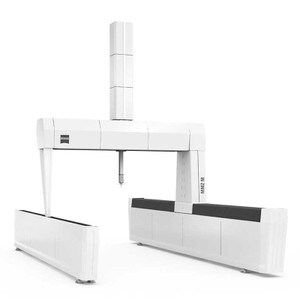

ZEISS MMZ M Bridge-Type CMM for Large Complex Workpieces

Brand: ZEISS
ID#: MMZ M
|MFGID: MMZ M
Quote Required
Contact MSI Viking for Virtual or In-Person Demo!
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

Description

ZEISS MMZ M Bridge-Type CMM-Coordinate Measuring Machine for Large Complex Workpieces
Precise measurements at favorable acquisition costs – this was the goal when developing the ZEISS MMZ M. The machine is ideal for checking complex workpieces, especially those with tight tolerances.

Low infrastructure costs
Minimal footprint compared with measuring range to minimize the amount of space required
Minimized foundation requirements to reduce costs for the foundation
Articulating probe holder for maximum flexibility and minimized costs with measuring styli

Future-proof and high-quality
ZEISS VAST navigator probe system to quickly calibrate, scan and increase precision
ZEISS VAST performance to increase measuring throughput

Ergonomically-correct work
All-sided view of the measuring range
Walk-in measuring area for effective analysis directly on the workpiece
Mobile data station for direct programming on the workpiece

Efficient, highly precise measurements
Resistant to harsh environmental conditions for minimal demands on the measuring room
Large bearing clearances and a stable bridge design for an exceptional scanning performance
Thermofit XL stylus extensions for measuring deep boreholes (1,200mm)

Specifications

  • Range:X [mm] 2000; 3000 Y [mm] 3000, 4500, 6000 Z [mm] 1200, 1600, 2000
  • Type:Large Bridge-Type CMM
  • Accuracy:Length measurement error: MPE_E150 from 2.2 + L/400 µm Single stylus probing error: MPE_PFTU from 1.7 µ Scanning probing error: MPE_THP/tau from 2.2 µ / 64 s Form measuring error: MPE RONt from 2.0 µm
  • Details:Sizes up to: x 3000 mm | y 6000 mm | z 2000 mm
    Length measurement error [µm]: From 2.2 + L/400 µm

    Operating mode: Motorized/ CNC
    Available Software: CALYPSO; GEAR PRO; PiWEB
    Available Sensors: LineScan, RDS, VAST gold, VAST XT gold, VAST XTR gold, VAST XXT, ZEISS FalconEye

  • Specifications:Dynamics
    Travel speed Set-up mode in mm/s Axes 0 to 90
    Batch measurement mode: in mm/s Axes max. 300; in mm/s Vector max. 520
    Acceleration: in mm/s2 Axes max. 300; in mm/s2 Vector max. 520
    Scanning speed in mm/s max. 200
