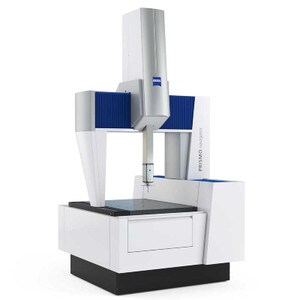

ZEISS PRISMO navigator Bridge-Type CMM Machines

Brand: ZEISS
ID#: PRISMO navigator
|MFGID: PRISMO navigator
Quote Required
Contact MSI Viking for Virtual or In-Person Demo!
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information


ZEISS PRISMO navigator Bridge-Type CMM Ideal for All Measuring Tasks.
Turbo scanning: VAST navigator
ZEISS PRISMO navigator enables high-speed with maximum precision. navigator technology is the logical enhancement to scanning from ZEISS. It automatically configures the maximum measuring speed during scanning – with guaranteed accuracy. Additional time is saved through tangential approach and scanning, helix scanning and fast dynamic stylus calibration.

Computer-Aided accuracy (CAA)
ZEISS PRISMO navigator uses computerguided corrections of all dynamic influences on the machine. This optimizes precision during high-speed scanning.

Measuring near production
ZEISS PRISMO is also ready for environments near production, thus eliminating a trip to the measuring lab. All machine parts critical to operations are perfectly matched. This is achieved through the use of in-house developments for all critical components.


  • Range:X [mm] 700; 900; 1,200; 1,600. Y [mm] 900; 1,200; 1,500; 1,800; 2,400; 3,000; 4,200. Z [mm] 500; 650; 1,000
  • Type:Bridge-Type CMM
  • Specifications:Bridge made of carbon-fiber compounds and ceramic for minimal weight and high flexural strength
    Temperature-neutral, glass ceramic scales
    All axes with air bearings from ZEISS on four sides. X axis: 8 air bearings; Y axis: 8 air bearings; Z axis: 5 air bearings
    Elastomer vibration damping, as well as covered guideways and scales for use near production
    Workpiece weights up to 5,000 kg
