ZEISS RONDCOM 31 and RONDCOM 41 Form Testers

Brand: ZEISS
ID#: RONDCOM 31 and 41
|MFGID: RONDCOM 31 and RONDCOM 41
Quote Required
Contact MSI Viking for Virtual or In-Person Demo!
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

Description

ZEISS RONDCOM 31 and RONDCOM 41 are Sturdy and Manual Form Testers.

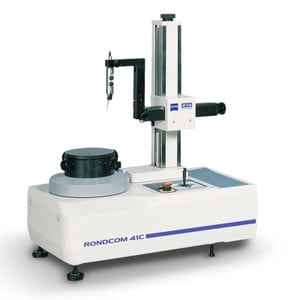

ZEISS RONDCOM 41 is a sturdy device with many analysis functions, e.g. Fourier analysis. The precise rotary table on air bearings ensures optimal radial runout properties and excellent measurement of even the most narrow tolerances. RONDCOM 41 features a high-quality measuring Z axis that permits the capture of parameters such as cylinder form, parallelism, straightness and perpendicularity. Its patented, semi-automatic alignment makes RONDCOM 41 particularly effective. The accompanying ACCTee PRO software supports the user with an intuitive user interface for particularly fast and simple alignment.

The compact RONDCOM 41 table-top form tester allows the the analysis of roundness, cylinder form, perpendicularity, parallelism, straightness, flatness, coaxiality, concentricity, thickness error and radial runout. With rotational error of just 30 nanometers, RONDCOM 41 is ideal for a wide range of precision parts that have a maximum diameter of 400 mm and weigh up to 25 kg.

ZEISS RONDCOM 31 is like the RONDCOM 41 but with a shorter, non-measuring Z axis. RONDCOM 31 is a compact device with top-class analysis functions, e.g. Fourier analysis. The form tester features a precise rotary table on air bearings for optimal radial runout properties and excellent measurement of even the most narrow tolerances. The ACCTee PRO software with graphic operator support allows fast work and particularly simple and fast alignment, therefore further increasing the effectiveness of RONDCOM 31.

The exact RONDCOM 31 table-top form tester is ideal for analyzing roundness, flatness, coaxiality, concentricity and radial runout. With its high rotational accuracy, RONDCOM 31 is perfect for a large number of parts from the mechanical engineering, automotive and medical technology industries.

Specifications

  • Details:RONDCOM 41
    Compact table-top form tester with measuring Z axis
    Faster thanks to patented semi-automatic alignment
    More accurate thanks to precision rotary table on air bearings
    Simple operation through guided measurement with ACCTee PRO (included)
    Ideal for form measurements on precision parts up to 25 kg

    RONDCOM 31- like the RONDCOM 41 but with a shorter, non-measuring Z axis
    Table-top form tester with top-of-the-class properties
    Faster thanks to patented semi-automatic alignment
    More accurate thanks to precision rotary table on air bearings
    Simple operation through guided measurement with ACCTee PRO (included)
    Ideal for form measurement on precision parts
  • Specifications:Technical data summary Roundness error** 0.02 + 0.0003* (50 W/U filter) Measurable diameters up to 250 mm Max. workpiece diameter 400 mm Z axis straightness (with RONDCOM 41) 0.5 µm (100 mm) Max. workpiece weight 25 kg Z axis measuring range RONDCOM 41: 300 mm (500 mm); RONDCOM 31: 200 mm
    **µm + µm/mm measuring height. *Deviation from reference circle
