ZEISS RONDCOM 60A and 60AS High Accuracy Universal Form Testers

Brand: ZEISS
ID#: RONDCOM 60A and 60AS
|MFGID: RONDCOM 60 A and 60 AS
Quote Required
Contact MSI Viking for Virtual or In-Person Demo!
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

Description

ZEISS RONDCOM 60 A and RONDCOM 60 AS highly accurate form testers enable excellent measurement of even the most narrow tolerances.

With automatic alignment in under a minute, the RONDCOM 60 A enables high productivity. The CNC offset stylus mount can be aligned with the component completely automatically, enabling deep insertion and measurement below the R axis. All the RONDCOM 60A axes are on air bearings, making them exceptionally precise. The heart of the RONDCOM 60 is an ultra-accurate, wear-free rotary table on air bearings featuring rotational accuracy of 20 nanometers. For extreme precision, the RONDCOM 60 A features an incremental glass scale in the R axial direction.

The RONDCOM 60 A is a universal form tester for the analysis of roughness, cylinder form, perpendicularity, parallelism, straightness, flatness, coaxiality, concentricity, thickness error and radial runout. With its high rotational accuracy, RONDCOM 60 A is perfect for a large number of precision parts from the mechanical engineering and medical technology industries.

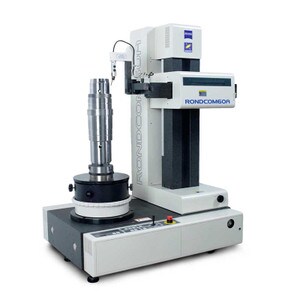

RONDCOM 60 A
Highly-accurate form tester from the reference class for excellent measurement of the tightest tolerances
Ultra-accurate, wear-free rotary table on air bearings. Accuracy of 20 nanometers with a load capacity of 60 or 100 kg
Extreme long-term stability through the quality design and heavy granite axes
Maximum precision through R, Z and rotary axes on air bearings
Incremental glass scale in the R axis direction
Higher throughput thanks to fast, automatic alignment in less than one minute
Large deflection range and high resolution of the detector and stylus system for higher throughput – centering is not necessary for serial measurements

Patented CNC offset stylus mount
For CNC-guided rotating and pivoting of the stylus
Measurement below the R axis
Deep penetration with the standard stylus

Options
Customized R axis length for over-large component diameters
Z measuring range available in 500, 800, and 1000 mm

RONDCOM 60 AS
Like the RONDCOM 60 A, but with even greater accuracy
Nanometer accuracy for excellent measurement of even narrower tolerances thanks to optimized acceptance and correction methods
Ultra-accurate, wear-free rotary table on air bearings. Accuracy: 10 nanometers; load: 60 kg

Specifications

  • Details:High throughput thanks to fast, automatic alignment in less than 60 seconds (CNC) Long-term stability thanks to the high-quality granite construction of all axes Precision air bearings in all axes Ultra-accurate, wear-free rotary table on air bearings IMR sensor with safety function in all axes for maximum protection of the stylus Incremental glass scale in the R axial direction
  • Specifications:Technical data summary

    RONDCOM 60 A
    Roundness error** 0.010 + 0.0003* (50 W/U filter)
    Measurable diameter 420 mm (larger optional)
    Max. workpiece diameter 680 mm (larger optional)
    Z axis straightness 0.10 µm (100 mm)
    Max. workpiece weight 60 kg (100 kg optional)

    RONDCOM 60 AS
    Roundness error** 0.005 + 0.0003* (50 W/U filter)
    Measurable diameter 420 mm (larger optional)
    Max. workpiece diameter 680 mm (larger optional)
    Z axis straightness 0.05 µm (100 mm)
    Max. workpiece weight 60 kg
    **µm + µm/mm measuring height *Deviation from reference circle.
