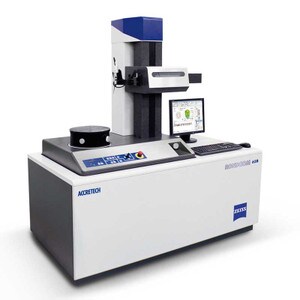

ZEISS RONDCOM 65 B Ultra Class Form Tester

Brand: ZEISS
ID#: RONDCOM 65B
|MFGID: RONDCOM 65 B
Quote Required
Contact MSI Viking for Virtual or In-Person Demo!
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

Description

ZEISS RONDCOM 65 B Excellent rotational accuracy, ultra-precision, high throughput and long-term stability.
Fast automated alignment and a rotary table on air bearings impress with their precision and efficiency.

A rotational accuracy of 10 nanometers makes the trend-setting RONDCOM 65 B form tester the best in its class. The system positions workpieces fully automatically in less than a minute. The R, Z and rotary axes of the RONDCOM 65 B are equipped with ultra-precise air bearings, enabling the outstanding measurement of the smallest tolerances. Using granite for the base, columns and the R axis makes the machine durable and stable. The RONDCOM 65 B features an incremental glass scale in the R axial direction, and the thermal and vibration insulated table ensures excellent measuring stability. The optional patented CNC offset stylus mount of the RONDCOM 65 B measures difficult-to-reach components, even below the R axis, and enables deep insertion with the standard stylus.

Universal form tester with an excellent rotational accuracy of 10 nanometers
Higher throughput thanks to automatic alignment in less than one minute
Base, Z and R axes made of granite, making the system extremely stable and durable
Table is thermally insulated and actively insulated against vibrations, ensuring excellent measurement stability
Precision air bearings in all axes
Ultra-precise, wear-free rotary table on air bearings
Large deflection range of ± 1,000 µm and a high-resolution IMR sensor of 2 nanometers
IMR sensor with safety function in all orientations for maximum protection of the stylus
Incremental glass scale for highly accurate measurements in the R axial direction

The RONDCOM 65 B is a universal form tester for the analysis of roughness, cylinder form, perpendicularity, parallelism, straightness, flatness, coaxiality, concentricity, thickness error and radial runout. With a rotational error of just 10 nanometers, the RONDCOM 65 B is ideal for a wide range of precision parts with a maximum diameter of 420 mm and weighing up to 60 kg.

Specifications

  • Details:Ultra-accurate, wear-free rotary table on air bearings, 10 nanometer rotational error Extreme long-term stability through the quality design and heavy granite axes Ultra precision with R, Z and rotary axes on air bearings Thermally insulated, active vibrationinsulated table Incremental scale in the R axis direction Higher throughput thanks to fast, automatic alignment in less than one minute Optional: Patented CNC offset stylus mount For CNC-guided rotating and pivoting of the stylus Measurement below the R axis Deep penetration with the standard stylus Options 800 or 900 mm Z axis Optical white light sensor
  • Specifications:Technical data summary

    Roundness error** 0.005 + 0.0002* (15 W/U filter) Measurable diameter 420 mm Max. workpiece diameter 680 mm Z axis straightness 0.05 µm (100 mm) Z axis parallelism 1.5 µm (500 mm) R axis parallelism 0.5 µm (200 mm) Max. workpiece weight 60 kg
    **µm + µm/mm measuring height *Deviation from reference circle.
