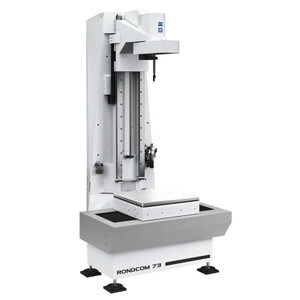

ZEISS RONDCOM 73 A Spindle Form Tester for Heavy Workpieces

Brand: ZEISS
Quote Required
Contact MSI Viking for Virtual or In-Person Demo!
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information


ZEISS RONDCOM 73 is a universal roundness/spindle tester with a large measuring range for heavy workpieces.
The spindle form tester features high rotational accuracy and minor parallelism errors.

The working range of the RONDCOM 73 A is exactly where other form testers reach their limits. The form measuring station features excellent rotational accuracy and a substantial measuring range in spite of its compact design. Heavy workpieces also pose no problem for this precise spindle form tester. Comprehensive collision protection, fully automated alignment of the workpiece and automated CNC measuring runs set the RONDCOM 73 A apart. The ACCTee PRO software included offers an intuitive user interface and guides the user through the entire measuring process.

Higher throughput thanks to automated alignment and CNC runs
Excellent rotational accuracy with a large measuring range
Collision protection in all directions
Ideal for heavy workpieces
Safety device and automatic weight counterbalance of the R axis
Automatic measurement of different diameters without manually moving the sensor
Intuitive operation with ACCTee Pro
Granite construction ensures long-term stability
The RONDCOM 73 A is very flexible thanks to extensive accessories and fixture designs tailored to the customer's needs. The RONDCOM 73 A is ideal for measuring jobs such as cylinder heads, engine blocks, crankshafts and cam shafts, and for highly accurate measurements on heavy workpieces.


  • Details:More throughput thanks to automatic alignment and automatic CNC measuring runs
    More tolerance flexibility for production through high measuring accuracy
    Long-term stability through highly rigid machine design
    Easy to use thanks to modular ACCTee PRO software
    Fast CNC inspection plans via teach-in or offline programming
    Flexible thanks to extensive accessories and individually configurable equipment concept
    Ideal for applications such as cylinder heads, engine blocks, crankshafts and cam shafts, and for highly-accurate measurements on oversized workpieces
  • Specifications:Technical data summary

    Roundness error* 0.06 µm (50 W/U filter) Z axis measuring path 1,000 mm Z axis travel speed up to 30 mm/s R axis traversing length 50 mm Max. measurable diameter 450 mm Max. workpiece weight 200 kg
    *µm + µm/mm measuring height
