ZEISS RONDCOM 76 A Spindle Form Tester Best Rotational Accuracy
Brand: ZEISS
ID#: RONDCOM 76A
Product Information
Description

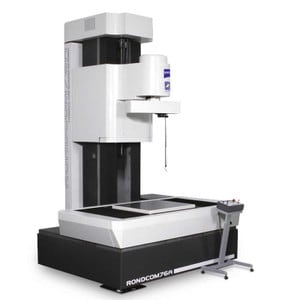

ZEISS RONDCOM 76 A Spindle Form Tester Best Rotational AccuracyThe leading spindle form tester at ZEISS stands for efficiency and greatest possible accuracy.
The RONDCOM 76 A spindle form tester features the highest efficiency and accuracy in its class for heavy workpieces.
The RONDCOM 76 A is a universal CNC form measuring station with outstanding rotational accuracy. The high travel speed of up to 100 mm/s in all axes (R, X, Y, Z) shortens the measuring time considerably while automated CNC measuring runs enable the excellent efficiency of the RONDCOM 76 A.
On the RONDCOM 76 A, the machine bed and columns are made of high-quality granite which also ensures accuracy and stability. Accurate air bearings in the X, Y, Z and rotary axes make this spindle form tester extremely reliable and low-maintenance. Even heavy workpieces can be fed in without any friction or disruption because the RONDCOM 76 A features an integrated anti-vibration table with active damping. Greatest possible rotational accuracy with excellent efficiency
Reduced measuring times through an extremely high travel speed
Outstanding cost effectiveness thanks to fully-automated CNC runs
Fully automatic control of the 7 axes and excellent straightness values in all axes
High-quality granite ensures long-term stability
Highly accurate air bearings in the X, Y, Z and and rotary axes
Comprehensive safety and collision-protection design
Ideal for heavy workpieces
Parallelism measurements via accurate and specified axes
Informative multi-flatness evaluation in the R axis
Precise diameter measurements
Easy to use and program using ACCTee PRO
Fast CNC inspection plans via Teach-in or offline programming
The RONDCOM 76 A is very flexible thanks to extensive accessories and fixture designs tailored to the customer's needs. The form measuring station is ideal for measuring tasks such as cylinder heads, engine blocks, crankshafts and cam shafts, and for highly accurate measurements on heavy workpieces.
Specifications
- Details:Spindle form tester featuring the highest efficiency and accuracy in its class for heavy workpieces.
Reduced measuring times thanks to high travel speeds of 100 mm/s on all axes
More throughput thanks to automatic alignment and automatic CNC measuring runs
Fully automatic control of all 7 axes
More tolerance flexibility for production through high measuring accuracy
Machine bed and Z axis made of non-warping hard stone for long-term stability
Integrated anti-vibration table with active damping
Highly precise air bearings in X, Y, Z and rotation axes low maintenance and durable
Reliable thanks to extensive collision protection and its design
Parallelism measurements via highly accurate and specified axes
Informative multi-flatness evaluation in the R axis
Exact diameter measurement
Easy to use thanks to modular ACCTee PRO software
Fast CNC inspection plans via teach-in or offline programming
Flexible thanks to extensive accessories and individually configurable equipment concept
Ideal for applications such as cylinder heads, engine blocks, crankshafts and cam shafts, and for highly-accurate measurements on over-sized workpieces - Specifications:Technical data summary
Roundness error* 0.04 + 0.0003 (50 W/U filter)
Z axis measuring path 1,000 mm (optional 1,500 mm/2,000 mm)
Z axis travel path 700 mm (optional 1,500 mm)
Y axis travel path 200 mm
R axis traversing length 290 mm
Travel speed 100 mm/s
Max. measurable diameter 500 mm
Max. workpiece weight 200 kg (optional 1,000 kg)
*µm + µm/mm measuring height
