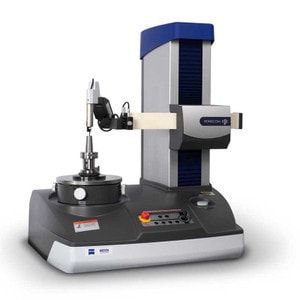

ZEISS RONDCOM NEX High Accuracy Form Testers

Brand: ZEISS
ID#: RONDCOM NEX
|MFGID: RONDCOM NEX
Quote Required
Contact MSI Viking for Virtual or In-Person Demo!
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

Description

ZEISS RONDCOM NEX Form Tester has the highest accuracy in its class. Precision, rotary table on air bearings and CNC offset stylus mount are the outstanding features of RONDCOM NEX.

The high-precision RONDCOM NEX form tester offers a broad spectrum of applications and a rotational accuracy of 20 nanometers. The patented CNC offset stylus mount enables CNC-guided rotating and pivoting of the stylus and allows deep insertion and also measurement below the R axis.
RONDCOM NEX additionally features an on-board R axis ceramic with high rigidity and reduced weight, allowing even more accurate measurement of large cone angles, diameters and straightness.
The form tester has an extended centering range of ± 5 mm and a precise, wear-free rotary table on air bearings.
Thanks to the improved design, the form tester is even more stable against air circulation.

Available as RONDCOM NEX 100 (manual machine), the RONDCOM NEX 200 (automatic part alignment) and the RONDCOM NEX 300 (full CNC)
Higher throughput through fast, fully automatic alignment for RONDCOM NEX 300
Available as a sturdy, space-saving and attractively-priced FX version with integrated, active vibration damping, as comprehensive SD desk furniture or as a DX version suitable for production

RONDCOM NEX evaluates form and position tolerances such as roundness, cylinder form, perpendicularity, parallelism, straightness, flatness, coaxiality, concentricity, thickness error and radial runout. With rotational error of just 20 nanometers, RONDCOM NEX is ideal for a wide range of precision parts that have a maximum diameter of 580 mm and weigh up to 30 kg.

Specifications

  • Details:Highest accuracy in its class with a broad spectrum of applications
    Patented CNC offset stylus mount for CNC-guided rotating and pivoting of the stylus
    Measurement of narrow tolerances also below the R axis
    More accurate measurement via a CNC pivot around the measuring sphere
    Large deflection range and high resolution of the detector and stylus system for higher throughput
    Linear scale for exact measurements in the R axis direction
    Ultra-accurate, wear-free rotary table on air bearings
  • Specifications:Technical data summary
    Roundness error** 0.01 + 0.00016* (50 W/U filter)
    Measurable diameter 300 mm
    Max. workpiece diameter 580 mm
    Z axis straightness 0.1 µm (100 mm)
    Max. workpiece weight 30 kg
    Z axis measuring range 300 mm/500 mm
    **µm + µm/mm measuring height *Deviation from reference circle.
