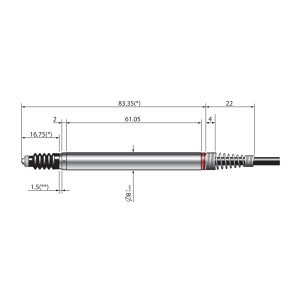

Marposs 3PR05L0000 RedCrown2 Displacement Sensor ±2.5mm LVDT - F25 Analogue Pencil Probe
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST
DescriptionMarposs 3PR05L0000 RedCrown2 Displacement Sensor ±2.5mm LVDT - F25 Analogue Pencil Probe. RedCrown2™ is the latest generation of pencil probes developed by Marposs, to provide the highest metrological performance levels in any application. The compact shape, measurement precision, sturdy design, ease of clamping make this type of sensors the basic element for creating customised solutions. They can be used in numerous applications and combined with various interfaces. The range also allows for a high level of customisation based on the customer's specifications, to provide optimal solutions for every requirement. The analogue Red Crown2 version, with LVDT transducer, can be used with standard Marposs electronic units as well as with other electronic units available on the market. The measurement can be displayed with Marposs electronic units (Nemo, Merlin, E9066). Both static and dynamic measurements can be performed (maximum sampling frequency: 1000 acquisitions/s). Both static and dynamic measurements can be performed (maximum sampling frequency: 4000 samples/s).
- Range:5mm (±2.5mm)
- Accuracy:± MAX(2,5+|2*[Reading (mm)]|;|7*[Reading (mm)]|)
