Phase II PHT-3340 Mini Integrated Portable Hardness Tester with DL Impact Device

by Phase II
ID#: PHT-3340
|MFGID: PHT-3340
Your Price:
$2,086.88
Add Calibration w/ Certificate?
No
  • No
  • Yes - A2LA Calibration Hardness Tester: Portable (+ $158.00)
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

Description

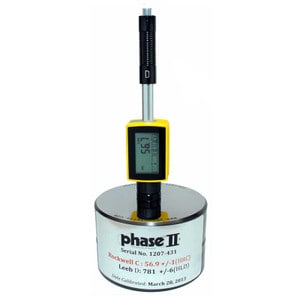

Phase II PHT-3300 Mini Integrated Portable Hardness Tester is an integrated unit designed to test gear teeth and other difficult to access applications. The 3340 hardness tester is capable of measuring the surface hardness of a broad variety of metals on flat and round surfaces. This instrument comes complete with a dedicated DL impact device, calibrated test block and rugged carry case.. It automatically computes all Vickers, Brinell, Rockwell and Shore hardness values. USB output enables this new model to print any of it’s memory from up to 500 groups. The impact direction can be set so that the accurate values can be achieved at any angle, even upside down! Statistical mean value is automatically provided. The measuring method of the PHT-3340 portable hardness tester is defined as “the quotient of the impact body’s rebound velocity over its impact velocity”. Optional accessories include various support rings to meet the requirements of specialized convex or concave applications. MEETS ASTM A956-06 SPECIFICATIONS
