Q-Mark TM3-2530-SN M3 2.5 mm Silicon Nitride tipped, Cylinder Stylus, L 30.0 mm, EWL 23 mm
Brand: Q-Mark
ID#: TM3-2530-SN-QMK
Product Information
Description

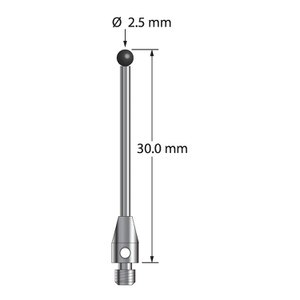

M3 stylus with 2.5 mm diameter silicon nitride ball, 1.5 mm diameter carbide stem, and 4.0 mm diameter x 7.0 mm long stainless steel base. Overall stylus length is 30.0 mm. Stylus weight is 1.19 grams.Specifications
- Details:Thread-Connector: M3
Ball Diameter: 2.5 mm
Tip Material: Silicon Nitride
Effective Work Length: 23 mm
Stem Material: Tungsten Carbide
Base Material: Steel
Base Diameter: 4.0 mm
