Starrett 123EMZ-24 Master Vernier Caliper; 0-24"- 600mm Range-Case

Brand: Starrett
ID#: 123EMZ-24-STR
|MFGID: 123EMZ-24
Your Price:
$1,633.49
Add Calibration w/ Certificate?
No
  • No
  • Yes - A2LA Calibration Caliper: 18.1" to 40" (+ $45.00)
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

Description

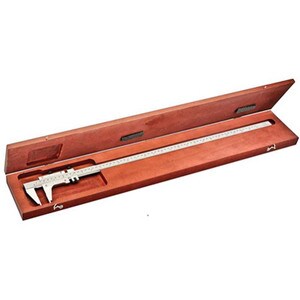

The Starrett 123EMZ-24 Master Vernier Caliper has a measuring Range of 0-24"- 600mm with 15-16"- 23.81mm Bar Width, 2-5-16"- 58mm Jaw Depth and .300"- 7.62mm Maximum Nib Width closed. Equipped with half as many bar graduations as conventional single-vernier tools, is easy to read, has machine divided graduations, tight, smoothly fitted slides and a no glare satin chrome finish. Also features long 50-division vernier scales, an open-face design and the screw-type adjusting nut allows for fine measuring adjustments and lock nut holds measurements. Is constructed of fine tool steel and has hardened, ground and lapped measuring surfaces. Supplied with a finished wooden case.

Specifications

  • Range:0-24"-0-600mm
  • Graduation:0.001"-0.02mm
  • Type:English & Metric. Approx Jaw Depth=2-5-16"-58mm
  • Accuracy:+--.0005" per foot +--.01mm per 300mm
  • Details:Bar Width is 15-16"-23.81mm. Max Nib Width Closed: .300"-7.62mm
