Starrett 245 Engineers' Combination Taper Wire & Thickness Gage Inch 9 Leaves

Description

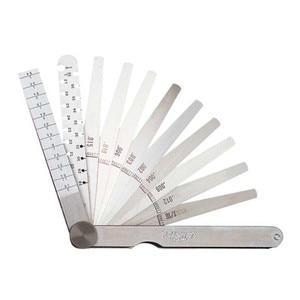

The Starrett 245 (pn:51170) Engineers' Combination Taper, Wire and Thickness Gage consists of a wire gage, a taper gage for measuring slot widths, and an assortment of thickness gage leaves, all folding within a compact steel case. The gage measures 1-2" wide x 4-3-4" long (12.7 x 120mm) and has a locking device to lock any leaf or leaves in position. Both 245 and 245M have an English Standard wire gage leaf similar to our 188, but with shorter Range, sizes numbered from 19-36 (.042-.004"), plus two additional sizes, 1-16" and 1-8". The reverse side has decimal equivalents in thousandths. The 245 has a taper gage leaf for measuring slot widths from 1-64-3-16" in 64ths of an inch, the reverse side having a 3" scale graduated in 8ths and 16ths. It has nine thickness or feeler leaves as follows: .002, .003, .004, .006, .008, .010, .012, .015 and 1-16".
