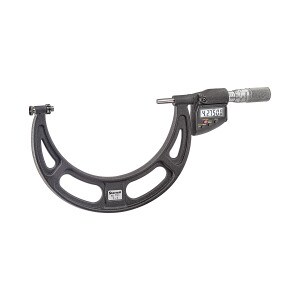

Starrett 714.1BFLZ Interchangeable Anvil Micrometer 6-9" Range

by Starrett
ID#: 714.1BFLZ-STR
|MFGID: 714.1BFLZ
Your Price:
$783.65
Add Calibration w/ Certificate?
No
  • No
  • Yes - Contact Me With A Quote
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

Description

Starrett 714.1BFLZ Interchangeable Anvil Micrometer 6-9" Range with output, Inch Grads, Friction Thimble, Spindle Lock, Shell and Thimble.The newly designed 714.1 series is very popular in machine or automotive repair shops and for all applications requiring a single micrometer with range greater than 1".Each micrometer is equipped with a series of easily interchangeable anvils, thus providing the full range in steps of 1" or 25mm with a single micrometer. Suitable wrenches are furnished to make necessary adjustments. The balanced and tapered frame provides comfortable and accurate measuring and gives the right feel during use.

Specifications

  • Range:Micrometer 6-9" Range
  • Specifications:• Equipped with an RS232 output - ideal for use with DataSure Wireless Data Collection System• Starrett no-glare satin chrome finish on thimble and sleeve• Large, easy-to-read .275" (7mm) tall characters, high contrast LCD digital readout• Extremely hard and stable one-piece spindle• Auto Off after 20 minutes of nonuse• Inch-millimeter conversion on English versions• Smooth friction thimble for uniform pressure• Measurement HOLD button• Zero at any position• Retain and return to true zero reading• Spindle lock• Data Output• Resolution: .00005" (0.001mm)• Accuracy +--.0001" (+--0.002mm)• PRESET button to install any reading at any position• Ability to set minimum and maximum limits
