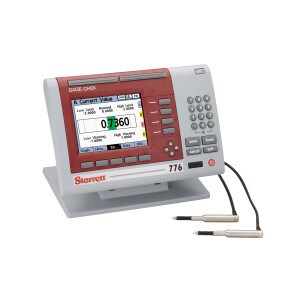

Starrett 776E Gage-Chek Multi-Axis, Measured Value Display
Brand: Starrett
ID#: 776E-STR
Product Information
Description
The Gage-Chek 776 is a multi-axis measured value display. It features intuitive visual display, helpful audio cues and user-defined formulas. Gage-Chek also reports dynamic Min/Max measurements, provides SPC analysis from an integrated database, and includes connectivity to PCs. Display, 180-ST, 8 input-Starrett LVDT PCs.Specifications
- Specifications:
- Large (6") color flat-panel LCD screen built into a compact ergonomically designed case with an adjustable tilt base
- Supports 4 input channels. These can be mathematically combined to display dimensions such as flatness, volume or runout
- Screens include individual readings with the capacity to display four lines simultaneously, bar and dial position style displays, graphs and SPC data
- Supports Starrett 776 Series Heidenhain Specto style 12 and 30mm range digital probes
- Measurements can be taken by the operator or in a semi-automated manner
- Large comfortable buttons allow easy selection of measurement functions, display screen changes, data entry, and zeroing the screen
- Speaker and external jack outputs can be adjusted to compensate for noisy work environments
- Earphones can be plugged into speaker jack for silent operation
- Two 3" x 1/2" keys placed over the screen can be programmed as hot keys for frequently used functions
- Optional foot switch available
- Display Digit Size: .45"
- Enclosure (WxHxD): 11.5"x7.5"x2.75"
- Base Width (WxHxD): 10"x2"x .5"
- Enclosure Weight: 3.5 lbs.
- Base Weight: 7 lbs.
- External Connections: Footswitch, Remote Keypad, Touch Probe, RS-232C Serial Port, Parallel Port
- Outputs: 2 Relay Outputs
Info and Guides
OPTIONAL ACCESSORIES
ID# | Product Name | Price |
---|---|---|
776-12-STR | Starrett 776-12 Specto 12mm Length Gage for 776A-B | $1,787.56 |
776-12R-STR | Starrett 776-12R Specto Length Gage- Radial for 776A/B | $1,946.81 |
776-1Z-STR | Starrett 776-1Z Gage-Check- Lever Type Probe- +/- .010 | $2,177.68 |
776-2Z-STR | Starrett 776-2Z GAGE-CHECK- TRADITIONAL PROBE- +/- .020 | $2,333.15 |
776-30-STR | Starrett 776-30 Specto 30mm Length Gage for 776A-B | $2,418.90 |
776-30R-STR | Starrett 776-30R Spectro Length Gage- Radial 30mm for 776A/B | $2,163.54 |
776-7-STR | Starrett 776-7 LVDT LENGTH GAGE- +/- .020 SHORT ANALOG PROBE | $1,596.27 |
776-8-STR | Starrett 776-8 LVDT LENGTH GAGE- +/- .040 ANALOG PROBE | $1,341.85 |
776-9-STR | Starrett 776-9 Lvdt Length Gage- +/- .100 Analog Probe | $1,510.52 |
PRODUCT SERIES
ID# | Product Name | Price |
---|---|---|
776A-STR | Starrett 776A Gage-Chek Multi-Axis, Measured Value Display | $4,751.12 |
776B-STR | Starrett 776B Gage-Chek Multi-Axis, Measured Value Display | $5,891.31 |
776D-STR | 776D Gage-Chek Multi-Axis, Measured Value Display | $5,140.29 |
776E-STR | Starrett 776E Gage-Chek Multi-Axis, Measured Value Display | $6,505.69 |
