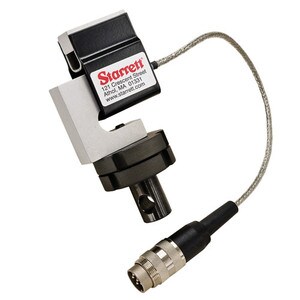

Starrett Force FLC-2000E Economy Load Cell Sensor; 2000N, 450lbf, 200kgf

by Starrett
ID#: FLC-2000E-STR
|MFGID: FLC-2000E
Your Price:
$1,131.73
Add Calibration w/ Certificate?
No
  • No
  • Yes - A2LA Calibration Load Cell: Tension OR Compression (0 - 500 lbs.) (+ $150.00)
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

Description

Starrett FLC-2000E Economy Load Cell Sensor has a Capacity of 2000N, 450lbf, 200kgf that is ideal for most force measurement applications. Has a safe overload of 150% full scale. The FLC Series load cell sensors are full-bridge sensors designed for force measurement applications. Temperature compensated and have a measurement accuracy of ±0.1% full scale throughout the entire Range of the sensor's rated capacity. Use on FMS Series force measurement test frames. Features TEDS identification per IEEE 1451.4 so they are "plug & play ready". All sensor characterization and calibration data is stored within the sensor's electronics. Supplied with a NIST Certificate of Calibration with uncertainty.

Specifications

  • Range:2000N, 450lbf, 200kgf
  • Type:S-type, economy
  • Accuracy:+--0.1% Full Scale
  • Resolution:10,000:1
