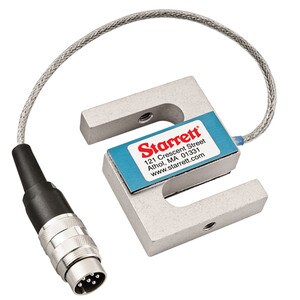

Starrett Force FLC-500 Sealed Load Cell Sensor; 5000N, 1125lbf, 500kgf
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST
DescriptionStarrett FLC-5KN Sealed Load Cell Sensor has a Capacity of 5000N, 1125lbf, 500kgf that is ideal for general purpose applications conducted outside a lab environment where dirt and dust may be present. Sealed load cells feature a safe overload of 150% of the sensor's rated capacity, are full-bridge and temperature compensated. Features a measurement accuracy of ±0.1% full scale throughout the entire Range of the sensor's rated capacity and designed for use on FMS Series force measurement test frames. Includes TEDS identification per IEEE 1451.4 so they are "plug & play ready". All sensor characterization and calibration data is stored within the sensor's electronics. All FLC Series load cell sensors are supplied with a NIST Certificate of Calibration with uncertainty.
- Range:5000N, 1125lbf, 500kgf
- Type:S-type, sealed
- Accuracy:+--0.1% Full Scale
