Starrett Force VISE-56GHA-1 Vise Action Fixture; 5kN- 1125lbf-Aluminum
Brand: Starrett
ID#: VISE-56GHA-1-STR
Product Information
Description

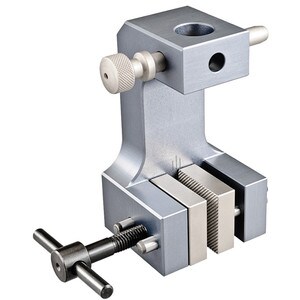

Starrett VISE-56GHA-1 Vise Action Fixture has a Load Capacity of 5kN- 1125lbf and 15.9mm- 5-8" Adapter size. Constructed of Aluminum and is a version of Starrett PNEU-56GH Series Pneumatic fixture. Features a mechanical vise-action actuator for tightening onto the sample as well as 220mm of extended height for larger samples. Supplied without jaw faces and must be ordered separately. (See JAWS-56G) for available jaw sets. Supplied with an upper and lower gripping fixture.Specifications
- Range:5kN- 1125lbf
- Type:Aluminum Vise
- Details:Adapter Size: 15.9mm- 5-8" Operating Temperature: 0°C to +180°C Clamping Surface: 30 x 50mm, Opening Width: 0-44mm
OPTIONAL ACCESSORIES
| ID# | Product Name | Price |
|---|---|---|
| JAW56G-B30-STR | Starrett Force JAW56G-B30 Jaw Face Set | $359.62 |
| JAW56G-BR30-STR | Starrett Force JAW56G-BR30 Jaw Face Set | $450.96 |
| JAW56G-D30-STR | Starrett Force JAW56G-D30 Jaw Face Set | $596.15 |
| JAW56G-PY30-STR | Starrett Force JAW56G-PY30 Jaw Face Set | $492.31 |
| JAW56G-V2-STR | Starrett Force JAW56G-V2 Jaw Face Set | $510.58 |
| JAW56G-V3-STR | Starrett Force JAW56G-V3 Jaw Face Set | $504.81 |
| JAW56G-WV30-STR | Starrett Force JAW56G-WV30 Jaw Face Set | $526.92 |
PRODUCT SERIES
| ID# | Product Name | Price |
|---|---|---|
| VISE-56GA-1-STR | Starrett Force VISE-56GA-1 Vise Action Fixture; 5kN- 1125lbf-Aluminum | $1,175.96 |
| VISE-56GHA-1-STR | Starrett Force VISE-56GHA-1 Vise Action Fixture; 5kN- 1125lbf-Aluminum | $2,221.15 |
