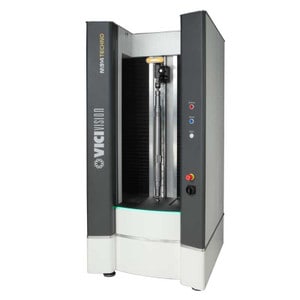

VICIVision Techno Series Optical Measuring Machine

by Vicivision America
ID#: VICI-TECHNO
|MFGID: VICI-TECHNO
Quote Required
Contact MSI Viking for Virtual or In-Person Demo!
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

Description

ViciVision Techno Range
The variety of the range ensures benchmark reliability.
Given the wide scope of measurement ranges offered, this machine range is designed to adapt to current and future manufacturing demands.
From 40 to 180 mm in diameter, and 300 to 1250 mm in length, the modular range of the Techno series can provide you with the most suitable machine for your production.
Keeping production in tolerance.
Reduction in machine downtime thanks to immediate inspection without the need to leave the wokstation.
Significant reduction in rejects, implementing the preventive actions indicated by the measurement trend graphs.
VICIVISION Tool-loop.
It is possible to set the interface between MTL and the workstation to automatically correct tool parameters. This function eliminates human error and speeds up tool parameter settings. Each part produced is ready to be delivered.
The machine improves productivity.
Operators are more independent during inspection and tool ofsets can be adjusted before parts become out of tolerance in order to reduce the amount of rejects produced.
Cutting-edge software
The brand new MTL 8.10 version is designed to improve the control phase and further extend the number of possible measurements. It includes specific tools for static and dynamic measurements, and dedicated tools for threads nuts, camshafts, turbines, etc.
Advanced software features
New automatic features help the operator to get measurements: self-programming, automatic loading of the part program, step by step assisted programming, DXF comparison.
Measurements report
The software allows the operator to print or export complete and custom pdf measurement reports. Results of measurements on histograms for immediate consultation.

Specifications

  • Accuracy:1,5 + D[(mm)/200)] µm 4 + L[(mm)/200)] µm/2+D[(mm)/100)] µm 5+L[(mm)/100)] µm
