626115-5000-140, Ø2.0 mm M5, Cyl stylus, tung carb spherical cylinder, tung carb shaft, L22.0 mm
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

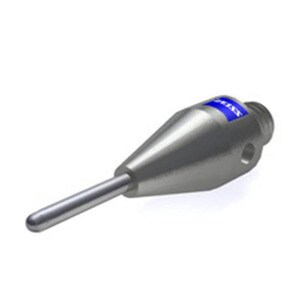

DescriptionM5, Cylinder stylus, tungsten carbide spherical cylinder, tungsten carbide shaft, Length: 22.0 mm
- Details:Product Type: Stylus
Connection Type In: M5

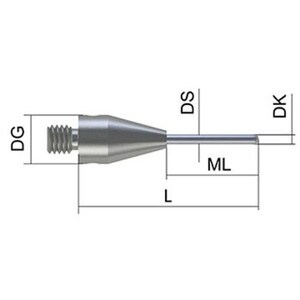

Ø Sphere (DK): 2.0 mm
Length (L): 22.0 mm
Ø Shaft (DS): 2.0 mm
Ø Body (DG): 11.0 mm
Measure Length: 12.0 mm
Stylus Type: Spherically Ended|Cylinder
Stylus Tip: Spherical Cylinder
Tip Material: Tungsten Carbide
Stem Material: Tungsten Carbide
Spherical styli have the largest field of application because they have the same probing behavior in every direction. They are therefore suitable for all common measuring tasks such as measuring bores and surfaces. The larger the stylus sphere size, the larger the mechanical filter. This means that the profile of your workpiece is smoothened, which is often required in form measurement. The deviation from the ideal sphere shape is usually shown in Grade. ZEISS styli spheres have Grade 5 as standard, but can also be offered in a higher Grade 3 for special requirements. Styli with a straight shaft are the most simple designed styli. The full shaft length can be used as measuring length.
Tungsten carbide is mainly used for disc and cylindrical styli as well as spheres in special sizes, which can be manufactured according to customer specifications. Please note that tungsten carbide styli have a very high weight. ZEISS uses carbide shafts for standard styli. These represent a good combination in terms of weight, rigidity and thermal expansion.
Depending on the material of the styli and the workpiece, wear of the styli may occur. Therefore, we recommend to check the styli regularly for wear. Also remember to clean the styli or replace them if necessary. ZEISS Styli Cleaning Wipes are available. To learn more about ZEISS styli, book our free stylus eLearning on the ZEISS eLearning platform.
✔ Carbide enables sphere diameters in special sizes
✔ Carbide shaft with high stiffness
✔ Straight shaft with longer measuring length
✔ Proven ZEISS quality through the use of selected materials
