Mahr 4103085 16 EWR-LI Caliper; .4-8"-10-200mm-Narrow Jaw

by Mahr
ID#: 4103085-MHR
|MFGID: 4103085
Your Price:
  • Retail Price: $1,040.00
  • Your Savings: 13.680000000000064
Mahr Depot Item. Usually ships in 1-2 Business Days.
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

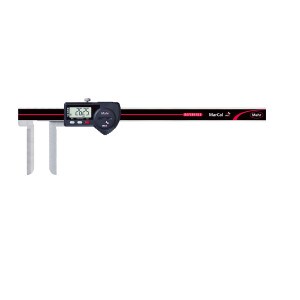

Mahr 16 EWR-LI, 4103085 Digital Caliper has a measuring range of 0.4-8"- 10-200mm. Includes a Long, Narrow measuring Jaws. It is equipped with IP67 Protection Class, which makes it waterproof as well as resistant against dust, coolants and lubricants. This is a Special Design caliper due to the Lond and Narrow measuring Jaws. Other features include a Reference Lock, On-Off Reset, to set the display to zero in either millimeters or inches and immediate measurement due to the Reference System. It also includes MarConnect data Output, giving the user the option to choose alternatively between USB, OPTO RS232C or Digimatic, Dirt wipers are integrated in the slide, Battery life lasts up to 3 years and contains a High contrast LCD screen with 8.5mm high digits. The slide and beam are constructed of hardened stainless steel, has measuring blades for inside measurements and a locking screw.


  • Range:.4-8"- 10-200mm
  • Type:Special design, wall thickness
  • Resolution:0.01mm -.0005"
