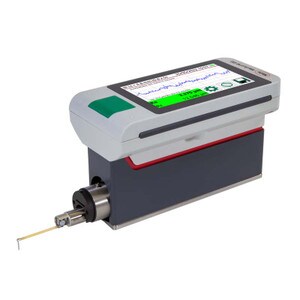

6910290 MarSurf M 410 mobile, 1500 µm (±750 µm)
Brand: Mahr
ID#: 6910290-MHR
Product Information
Description
The best among the "mobile" devices
- Simple and intuitive operation: as easy as operating a smartphone
- Large, illuminated 4.3" TFT touch display
- Assistant-guided tilt adjustment
- Unique touch arm management
- Separation of display and drive unit
- 55 parameters
- Magnetic stylus arm mounting
- Automatic cutoff selection ensures correct measurement results even for the non-measuring technician
| MarSurf M 410 | Art. no. 6910290 | |
|---|---|
| Traversing length (Lt) | till 26 mm |
| Dimensions in mm | 198 mm x 77 mm x 97 mm |
| Measuring principle | tactile stylus method, tactile skidless probe |
| Unit of measurement | metric/inch |
| Measuring force (N) | 0.00075 |
| Probe tip radius | 2 µm |
| Filter according to ISO/JIS | Gaussian filter (DIN EN ISO 16610-21), Robust Gaussian filter (DIN EN ISO 16610-31), Special filter (DIN EN ISO 13565-1), ls filter (DIN EN ISO 3274, can be switched off) |
| Cutoff Ic according to ISO/JIS | 0.08 mm, 0.25 mm, 0.8 mm, 2.5 mm, automatic filter detection, variable |
| Short stroke under ISO/JIS | selectable |
| Number n of sampling length (ISO/JIS) | selectable: 1 to 16 |
| Measuring speed | 0.1 mm/s to 1 mm/s |
| Positioning speed X axis | till 3 mm/s |
| Surface parameters | Over 55 parameters for R-, P-, W-Profiles per ISO/JIS/ASME/Motif standards |
| Energy supply | Integrated rechargeable battery (min. 1200 measurements) or via charging unit |
| Data interface | USB A, MarConnect (RS-232), Micro SD slot (up to 32 GB) |
| Languages | German, English, French, Italian, Spanish, Portuguese, Dutch, Swedish, Russian, Polish, Czech, Japanese, Chinese, Korean, Hungarian, Turkish, Romanian |
| Storage capacity | min. 3900 profiles, 500,000 results, 1500 PDF logs; expandable via microSD card (up to 32 GB) |
| Probe | inductive skidless probe system |
| IP protection category | IP 40 |
| Relative humidity | 30% to 85%, non-condensing |
| Operating temperature | 10°C to 45°C |
| Storage temperature | -10°C to 60°C |
| Weight (measuring instrument) | 300 g |
| Weight (drive unit) | 1120 g |
| Dimensions (measuring instrument) | 162 mm x 77 mm x 35 mm |
| Dimensions (drive unit) | 194 mm x 38 mm x 72 mm |
| Other functions | Lock/code word protection, date/time |
| Stylus | 2 µm; 5 µm |
| Parameters | Ra, Rq, Rz, Rz (JIS), Rz (Ry (JIS)), Rmax, Rp, Rp (ASME), Rpm (ASME), Rv, R3z, Rk, Rpk, Rvk, Mr1, Mr2, A1, A2, Vo, Rt, RPc, Rmr (tp JIS/ASME), RSm, RS, Rdq, RSk, Rku, Rdc, RHtp, Pdc, Pa, Pt, PMr, Wa, Wq, WSm, WSk, Wt, CR, CF, CL, R, Ar, Rx, W, AW (MOTIF), Wx (MOTIF), Wte (MOTIF), NW (MOTIF), NR (MOTIF), NCRX (MOTIF), CPM (MOTIF) |
| System of protection | IP 40 |
| Rechargeable batteries | Li-Ion, 3.7 V, 11.6 Wh, min. 500 measurements |
| Wide range power supply | 100 to 264 V |
| Measuring range (mm) | 500 μm (±250 µm) for 45 mm arm; 1500 µm (±750 µm) for 135 mm arm |
