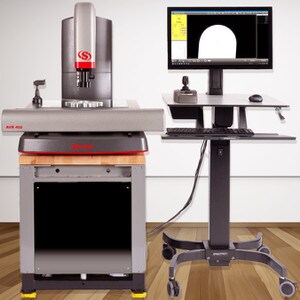

AVR400 CNC Vision Metrology System

Brand: Starrett
ID#: AVR400 Series
|MFGID: AVR400 Series

Product Information

Description

The AVR400 CNC Vision system is an update to the existing AVR series of benchtop Vision systems. With a stage travel of 400mm x 300mm x 200mm (15.8” x 11.8” x 7.9”) in the XYZ axes, this is the largest benchtop platform to date from Starrett®. Stage travel speed has also doubled from previous editions, with a travel speed capability of up to 120mm/sec. Coupled with existing CNC capabilites of the AVR line as well as the complete line of zoom and telecentric lens options, the AVR400 gives users the option to measure a broad range of part sizes, or larger runs of multiple parts, while simultaneously reducing inspection time. All without having to compromise accuracy.


Features

  • Z travel: 200mm (7.9")
  • Full CNC X-Y-Z positioning or motorized manual positioning using a pendant with joystick and trackball
  • Metlogix™ M3 metrology software
  • Video edge detection (VED)
  • Field-of-view (FOV) measurements integrated with stage motion
  • Renishaw scales for 4μin (0.1μm) of X,Y and Z axis (available on select models)
  • Color digital video camera
  • Collimated LED sub-stage illumination
  • Ring light LED surface illumination
  • Granite base


Specifications
