Beta LaserMike Z-Mike 4050 Z-Mike Pro 50 Bench Laser Micrometer

Brand: Beta LaserMike
ID#: Z-Mike Pro 50-NDC
|MFGID: Z-Mike 4050
Quote Required
Specifications Required to Order
QuantityPrice
Contact MSI Viking for In-Person or Virtual Demo.
Add Calibration w/ Certificate?
No
  • No
  • Yes - A2LA Calibration Laser Based Micrometer
Request Info
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

Description

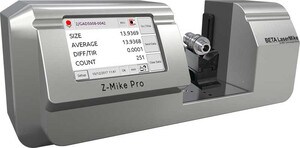

Beta LaserMike Z-Mike Pro is next evolution of the industry’s leading off-line part measurement system with over 15,000 gauges installed worldwide. Z-Mike Pro provides fast, accurate and repeatable dimensional measurements of outer diameter, inner diameter, ovality, multiple ODs, effective cutting diameter, TIR, taper, and part position, to name few. foremost manufacturers rely on Z-Mike Pro’s ultra-high accuracy and repeatability to help them deliver the superior-quality products their customers demand. Ready for service under Industry 4.0, Z-Mike Pro offers expanded connectivity, communication, and control features that increase performance capabilities.

Specifications

  • Range:0.010 to 2.0 in
  • Type:Non-contact
  • Accuracy:±0.000030 in
  • Details:Powerful connectivity, communication and control. Ethernet and USB connectivity simplifies integrating the gauge into centralized production networks. Additional USB resources provide greater flexibility in connecting BenchMike Pro to computers, data gathering devices and USB printers that support the CUPS protocol. This new platform lays the foundation for future connection via Wi-Fi. Easy-to-use features for simple setup and operation. Larger, higher-resolution, touch-screen graphical user interface gives operators a quick, simple means of viewing dimensional measurement, accessing gauge and system information, changing parts via libraries, and generating sample, batch, and fixture reports. No field calibration required. Z-Mike Pro uses a combination of built-in, auto-calibration and dual-differentiation technology that provides unmatched accuracy without the need for fiend calibration. This high-precision gauge also automatically compensates measurements due to the effects of temperature and barometric pressure. Z-Mike Pro maintains accuracy throughout the measurement range and automatically adjusts for temperature and pressure variations.
  • Specifications:Compatible with Z-Mike Pro 25, Z-Mike Pro 50, BenchMike Pro 25 and BenchMike Pro 50
  • Resolution:±0.000010 in
