CD5 Torque Indicator

Brand: Tohnichi
Your Price:
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

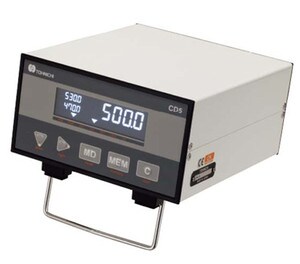

CD5 compact display is a digital display that shows values measured by the strain gauge sensor. Based on judgment results, the display changes its color in white/red/blue.


  • Details:
    1. Low cost, compact digital display for strain gauge sensor.
    2. Applicable with Tohnichi TCF, TCR series, and torque wrench with sensor.
    3. Can perform Pass/Fail judgment and output relay point of contact. Also provides analog output.
    4. Calibration methods: equivalent input calibration or by the actual weight.
    5. Measured data can be saved up to 1000 data items.
    6. Saved data can be transferred to PC or printer though RS232C output (equipped as standard).
    7. Can be used in a variety of AC power source environments, from 100 to 240V. Battery pack also available as an option.
    8. Excel Receiver software is a data input tool for Excel® data management. It can be downloaded for free.

    *Note: Excel® is a registered trademark of the Microsoft Corporation.
