Fowler 53-646-005-0 Bore Gage Setting Master w/o Blocks

Specifications

• Details:Fowler's Bore Gage Setting Master Kit without Gage Blocks is used for accurately setting any bore gage up to 6"/150mm in diameter to an accuracy of 0.0001"/0.003mm

  Setting Device
  • Base anvil: 2.750" x 0.80"
  • Adjustable anvil 2.375" x 0.375" (two each)
  • Internal capacity: 6"/150mm
  • Depth capacity: 1"/25mm
  • Centralizer capacity width: 2.625"/66.7mm
  • Quick-release holder for fast adjustment.
  • Can also be used of external setting, depending on application (external mics, snap gages, caliper gages)

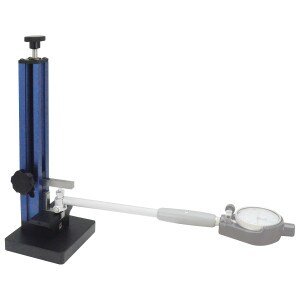

  *Image shown for representational purposes only.
