Hexagon 4.5.4 SF CMM hold 60 percent more weight

Description

Holds 60% more weight than competition using less workspace

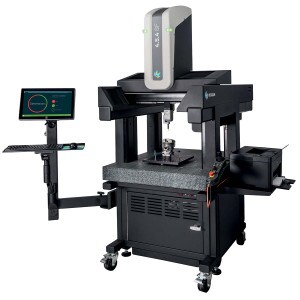

The 4.5.4 SF shares many of the unique user-experience benefits as the 7.10.7 SF, such as accuracy, extended temperature range and weight support. However, the most notable benefit of the 4.5.4 SF is its flexibility. The compact footprint and roll-around stand, specifically designed to fit through a standard door, allows the 4.5.4 SF to be easily relocated anywhere in the shop where a 110 V outlet is present and precise dimensional inspection is required.

The 4.5.4 Shop Floor (SF) coordinate measuring machine excels in tough shop-floor conditions. It draws its inspiration from over fifteen years of shop floor machine production experience, and thousands of installed units worldwide. It is designed to surpass the demanding requirements of harsh shop floor environments.

Its most notable feature is its flexibility. The 4.5.4 SF uses standard 110-volt outlets with no need for shop air. Its compact footprint and roll-around stand, specifically designed to fit through a standard door, lets you easily move the SF series anywhere in the shop where precise dimensional inspection is required.

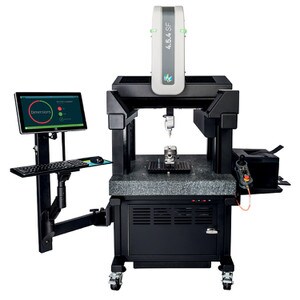

Optional programmable status lighting on the z-axis signals the machine’s progress throughout the measurement routine. An etched granite base defines the measurement envelope in the x and y axes. Workspace LED lighting illuminates the parts being inspected in poorly lit environments. An optional articulated arm supports the monitor and keyboard (shown here) to increase its ergonomic flexibility.

The 4.5.4 SF integrates advanced thermal compensation to adjust for shop floor temperature gradients. Protective covered ways guard the machine’s scales from collecting dirt & dust, ultimately affecting the machine’s performance. For movement throughout the facility, the 4.5.4 SF has built-in vibration resistance, giving operators’ confidence in the accuracy of their measurements. For operators monitoring multiple machines at once, Hexagon has developed the Message Light System, an alerting option to inform users of any errors that can occur during measurement from across the shop floor!

Economical to own and operate with low up-front cost and simple maintenance, the 4.5.4 SF could be the most flexible CMM you've ever operated. Plug it in and start measuring!
