Hexagon AS1-XL Absolute Scanner for big surfaces
Product Information
Description
Extra-wide scan line
Never-before-seen measurement scan-line width of up to 600 millimeters makes the full digitization of large surfaces faster and easier than ever before.
Large standoff
Unprecedented measurement stand-off of up to 1000 millimeters delivers excellent access to hard-to-reach hidden measurement areas, opening up a new world of laser scanner applications that were previously out of reach.
Low noise, big data
Up to 1.2 million points per second of high-quality measurement data, even when scanning shiny materials that often require spray with other scanners.
High-speed measurement
Digitize large surfaces quickly with data collected at 300 lines per second with no need to reduce laser line width or point spacing.
Metrology-grade accuracy
With accuracy retained to within 150 microns, the AS1-XL is the perfect tool for digitizing the larger, less complex surfaces that would typically demand infeasible measurement process times for a laser scanner.
SHINE performance
The advanced algorithms of our SHINE technology allow you to digitize almost any surface type with the default exposure settings, from glossy black plastic automotive body parts to molded carbon-fiber components, making high-quality measurement easier than ever with no high-level training required and operator variability eliminated.

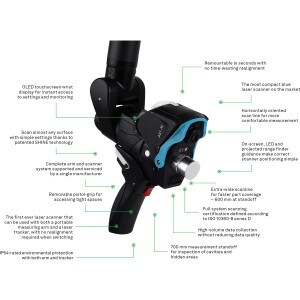

Ease-of-use
Switching between measurement profiles and executing of macros and other software functions is fast and easy direct from the scanner with the AP21’s programmable Quick Access buttons and the Absolute Arm’s OLED touch screen wrist display.
Light movement
Weighing in at just 460-grams, the AS1-XL is light and easy to move, minimizing the user fatigue that is one of the most common causes of inaccurate and unreliable measurement results.
Completely Portable
Lightweight design of the scanner carries through to the controller, which can be mounted directly on the tracker stand.
Visual guidance
A laser-projected range finder helps users measure more accurately and efficiently by helping ensure the scanner is positioned correctly relative to the part being measured.

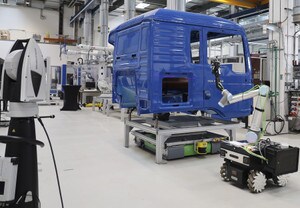

Automation ready
A direct digital input/output function built into the scanner controller allows robot movement and scanning tasks to be managed without a dedicated automation interface for laser tracker automation setups.
Cross-platform compatibility

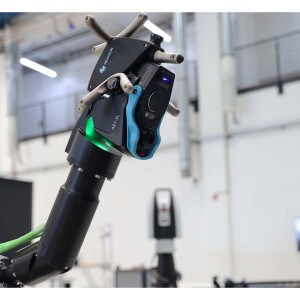

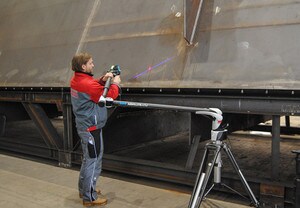

Fit the AS1-XL to a handheld Absolute Positioner AP21 unit to measure over large volumes with an Absolute Tracker, or switch to an Absolute Arm 7-Axis for smaller-scale measurement, with no realignment required when switching.
Specifications
- Specifications:Accuracy (sensor): 0.134 mm (PForm.Sph.1×25:ODS)
Point acquisition rate: up to 1.2 million points/s
Points per line: max. 4000
Line rate: max. 300 Hz
Line width (mid): 600 mm
Standoff: 700 ± 300 mm
Minimum point spacing: 0.080 mm
System scanning certification: yes
Laser class: 2
Operating temperature: 5–45°C
Weight: 0.46 kg
Features
The Absolute Scanner AS1-XL is a 3D laser scanner designed to meet the needs of emerging 3D scanning applications for which higher productivity is the priority. Working in conjunction with the Leica Absolute Tracker AT960 range of high-end laser tracker systems, the AS1-XL opens the door to previously infeasible large-scale 3D digitization tasks.
The Absolute Scanner AS1-XL is the first 3D laser scanner designed for large-surface inspection that supports automated and autonomous measurement systems. With the freedom provided by the WRTL wireless link accessory for the Leica Absolute Tracker AT960, the AS1-XL opens up the potential to autonomously capture data from extremely large parts in areas such as aerospace and energy.
