Hexagon Absolute Arm 6-Axis versatile measuring
Product Information
Description
Upgraded performance
The latest version of the 8th generation Absolute Arm offers improved accuracy across all models, along with improved stability robustness and repeatability. The system's collaborative feedback keeps users apprised of key environmental factors that can affect measurement results, such as vibration, displacement of the arm base, tilt and general instability of the arm and ambient temperature.
The complete portable probing arm

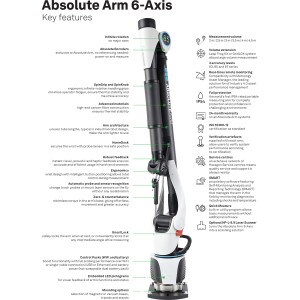

A specialised touch measurement tool that also boasts the option for entry-level 3D scanning – the Absolute Arm 6-Axis is one of a kind. Based on patented technology with Absolute Encoders located at every articulation point and designed with ease-of-movement and usage as a focus, this is a portable measuring arm like no other.
Usability, versatility, productivity
With usability central to its design, this is an articulating measuring arm that can’t be beaten when it comes to ease of movement and ease of measurement. All this adds up to a far more productive and versatile arm that delivers high-accuracy measurement results more quickly and more easily than ever before.
ISO certification
The probing accuracy of the Absolute Arm 6-Axis is certified according to ISO 10360-12 as standard.
IP54 certification
The world’s first portable measuring arm with an IP54 rating, and guaranteed functionality in temperatures of up-to 45 degrees Celsius, the Absolute Arm is the perfect partner for measurement in even the most challenging environmental conditions.
Absolute portability
Light-weight design, an integrated base and an innovative counterweight balance system make the Absolute Arm Compact the perfect device for measurement anywhere, even within a CNC machining center.
Advanced materials
Built on a foundation of high-tech carbon-fiber tube construction, the Absolute Arm maintains strength and thermal stability under any environmental conditions, offering reliable accuracy whatever the environment.
| Accuracy (EUNI₁) | Arm sizes | Series | Protection class | Operating temperature | Certification | Weight |
|---|---|---|---|---|---|---|
| From 0.023 mm | 2.0m / 2.5m / 3.0m / 3.5m / 4.0m / 4.5m | 83 series – Entry level measurement accuracy 85 series – Perfect balance between value for money and accurate measurement 87 series – Ultimate solution for portable high-accuracy measurement | IP 54 | 5 to +45°C | ISO 10360-12:2016 (for probing) | From 7.8 kg |
₁ Maximum permissible longitudinal error of measurement − according to ISO 10360-12:2016
Specifications
- Details:
Info and Guides
OPTIONAL ACCESSORIES
| ID# | Product Name | Price |
|---|---|---|
| Absolute Scanner AS1 | Hexagon AS1 Absolute Scanner 3d laser | Quote |
| Absolute Scanner AS1-XL | Hexagon AS1-XL Absolute Scanner for big surfaces | Quote |
| GridLOK | Hexagon GridLOK system for the Absolute Arm | Quote |
| HP-L-8.9 | Hexagon HP-L-8.9 for Absolute Arm (PCMMs) | Quote |
| RS5 | Hexagon RS5 High-quality 3D laser scanner | Quote |
PRODUCT SERIES
| ID# | Product Name | Price |
|---|---|---|
| Absolute Arm 6-Axis | Hexagon Absolute Arm 6-Axis versatile measuring | Quote |
| Absolute Arm 7-Axis | Hexagon Absolute Arm 7-Axis all-in-one measuring | Quote |
| Absolute Arm Compact | Hexagon Absolute Arm Compact small/medium parts | Quote |
