Hexagon Absolute Tracker ATS600 large-scale 3d

Description

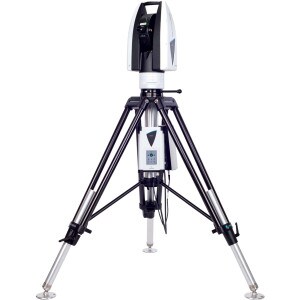

Leica Absolute Tracker ATS600: The multifunctional 3D laser tracker

Manufacturers are increasingly interested in digitally pinpointing and inspecting large parts and surfaces that are out of range of a traditional handheld 3D laser scanner, touch probe, or reflector. The Leica Absolute Tracker ATS600 meets these challenges with a unique working principle that accurately locates a point in 3D space with metrology-grade accuracy without a reflector.

Based on Wave-Form Digitizer technology, the ATS600 is powered by the first-ever Scanning Absolute Distance Meter, locating points within 300 microns from up to 60 meters away.

The ATS600 quickly produces a measurement grid by measuring points across a user-definable area. The point-grid density is customizable, balancing speed and detail in your metrology software.

With the ATS600, objects previously difficult to digitize can be quickly analyzed in 3D by a single operator. This direct scanning laser tracker expands productive quality control into new areas of production.

The ATS600 also includes features from the Absolute Tracker range, such as reflector measurement at up to 80 meters with PowerLock capability. This combination offers impressive performance for large-scale tasks.

Overview camera

High-resolution display with live view and multiple zoom levels.

Direct scanning

> 3D surface inspection without reflectors > Align the point cloud using reflector measurement > Dedicated line and ring scan profiles > Uniform grid scanning with 3D vector alignment

PowerLock

Automatically re-establishes interrupted line of sight.

Automation-ready

Mount on a mobile autonomous vehicle for automated inspection.

Panorama display

Automatic panorama display image for easier scan area management.

Hot-swappable battery power

Quick and easy cable-free setup.

Orient-to-gravity function

Z‑axis alignment to gravity, ideal for leveling.

Built-in Wi-Fi

Simple setup and remote operation.

Large volume

Measure within a volume up to 160 meters in diameter.

IP54 protection

Ingress protection against dust and contaminants.

ISO certification

Traceability certified to ISO 17025.

Real-time remote monitoring

Compatibility with HxGN SFx | Asset Management for Industry 4.0.

Reflectorless build and inspection

Enables fast adjustment and assembly without a reflector.
