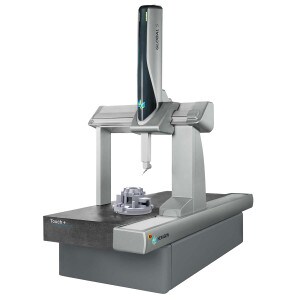

Hexagon GLOBAL Touch+ CMM with touch probe
Product Information
Description
Using a highly versatile and accurate 6-way touch-trigger probe with a motorized indexing probe head to flexibly position the probe during measurement, the GLOBAL Touch+ model is configured to provide outstanding tactile single‑point measurement performance on prismatic parts.
Optimal feature accessibility and minimized stylus changes are guaranteed even for the most intricate 3D part geometries. In addition, a multi-port module changer rack allows fast and repeatable changing of probe modules with different trigger forces and styli configurations without recalibration, further contributing to streamlining measuring cycles.
GLOBAL CMMs are built on advanced design principles to inspire certainty and confidence. They combine quality components and state-of-the-art technologies for long-term stability, reduced measurement uncertainty, adaptability to harsh measuring environments, fast measuring point capture and an advanced user experience. These metrology solutions will provide manufacturers with maximum value over the entire lifecycle.
Base system

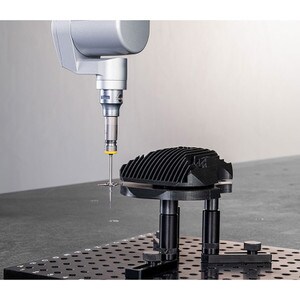

HP-THDe Touch Trigger Probe
Highly versatile touch trigger probe for outstanding measuring performance and functionality

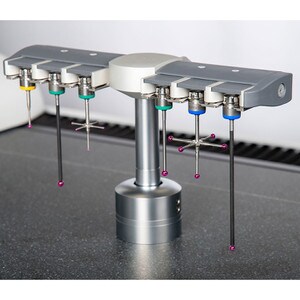

HR-MP Probe Module and Styli Changer Rack
The HR-MP rack makes it easy to interchange probe modules and styli during measurement routines. It can store up to six probe modules with styli configurations, allowing the user to perform flexible measurements without needing to pause the operation to manually swap the probe module or styli.

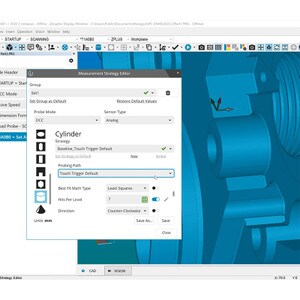

PC-DMIS CAD
Develop inspection programs using CAD models with PC-DMIS CAD with any kind of model - from simple 2D drawings to the most complex solid 3D models. Import and export CAD data in almost any format and work directly with native CAD models. Plus, powerful CAD-based tools help develop and debug the inspection programs, slashing the time spent writing them by up to 90%.
GLOBAL Touch+ benefits
- Rapid inspection
- Simple methodology
- Versatile measurements
- CAD-based measurement
General purpose measurement of size features
- Parts of varying complexity and size
- Standard geometric size features: distances, radii, angles, inner and outer diameters
- Position and orientation tolerances
- Complex 3D arrangement of geometric elements around the part
Specifications
- Specifications:

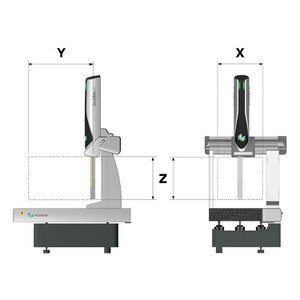

Measuring Volume
Type X (Width) Y (Depth) Z (Height) 5.5.5 500 mm 500 mm 500 mm 5.7.5 500 mm 700 mm 500 mm 7.7.5 700 mm 700 mm 500 mm 7.10.7 700 mm 1000 mm 700 mm 9.12.8 900 mm 1200 mm 800 mm 9.15.8 900 mm 1500 mm 800 mm 9.20.8 900 mm 2000 mm 800 mm 12.15.10 1200 mm 1500 mm 1000 mm 12.22.10 1200 mm 2200 mm 1000 mm 12.30.10 1200 mm 3000 mm 1000 mm
Features
- Sturdy mechanical design the solid granite base with integrated dovetail guide guarantees long‑term system stability and consistent accuracy over the entire measurement volume.
- Temperature compensation real‑time compensation of thermally caused measurement deviations through temperature sensing at the scales and on the workpiece ensures reliable measurement results.
- Messaging lights (option) messaging lights give operators the ability to monitor the machine’s status even from a distance, to optimize time and resource management.
- Bridge with triangular crossbeam featuring an improved stiffness-to-mass ratio relative to square or rectangular traverses, this design allows for the highest dynamics and high‑speed measurements.
- Extended temperature operating range (option) measure your components with more resistance to environmental influences. An extended temperature operating range (15 - 30°C) allows the CMM to operate closer to the production line without needing a costly climate room.
- High-speed and safety continuous monitoring of a defined safety area around the CMM allows worry-free high-speed measurement in CNC mode. The machine will slow down automatically when the user or an object encroaches upon the protected area.
- Preloaded air bearings on all axes contactless, low-friction and low-wear axis motion ensures fast and repeatable positioning at all speeds and accelerations, resulting in low measuring uncertainties.
- Real-time environmental monitoring (option) PULSE enables the user to monitor and log any environmental conditions surrounding the CMM and receive real‑time machine information.
- Future-ready concept the future‑ready pre‑cabling enables easy adaptation of the CMMs to future measurement tasks without costly downtime. A range of adaptability options can be flexibly selected during initial CMM configuration or set up later as upgrades.
- Low-maintenance belt drive system flat and V-ribbed belts ensure smooth and low-vibration axis motion.
- Eco Mode Eco Mode supports sustainability and productivity goals by automatically powering down the CMM when idle, which improves energy efficiency while keeping the machine ready to go.
