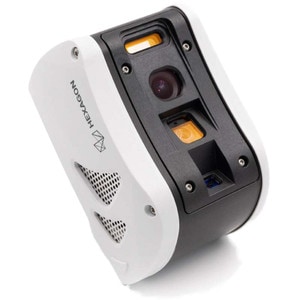

Hexagon HP-L-10.10 a 3d laser scanner for CMMs
Product Information
Description

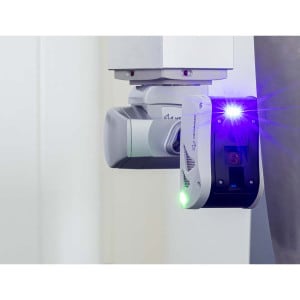

The Hexagon HP-L-10.10 isn’t just a market-leading scanning solution for CMMs. It’s the one laser scanner that turns your CMM into an optical multisensor system, combining unmatched speed, accuracy and flexibility to streamline the measurement of complex surfaces and workpieces. The cutting-edge HP-L-10.10 in combination with PC-DMIS software is prepared for any inspection challenge, setting a new standard for CMM laser scanning.
HP-L-10.10 is Hexagon’s most accurate laser scanner for CMMs. With a probing form error of 8 μm, the accuracy is close to the results operators can achieve with tactile probing solutions. At the same time, the HP-L-10.10 captures up to 600 000 points per second, which means unprecedent speed and amount of data, even when measuring difficult surfaces, like reflective or shiny ones.
HP-L-10.10 isn’t just superior when it comes to performance and accuracy; together with PC-DMIS measuring software it also brings unique new functions that transform the usage of CMMs during programming and executing measurement programs, as well as for advanced reporting and collaboration.
| Laser class | 2 (EN / IEC 60825-1:2014) |
| Emitted wavelength | 450 nm (visible blue) |
| Maximum average radiant power | ≤1 mW |
| Declared accuracy temperature range | 16 to 26 °C (61 to 79°F) |
| Protection against dust and water | IP51 (IEC/EN 60529) (except for warm-up terminal) |
| Ambient humidity | 95% non-condensing |
| Operating temperature | 16 to 32 °C (32 to 89.6°F) |
| Storage temperature | -30 to +70 °C (-22 to +158°F) |
| Weight | 427 g |
| Scanning frequency (Lines per second) | 300 Hz |
| Data rate | 600 000 pts/sec |
| Ambient light immunity of the sensor | 10 000 lx |
| Standoff and depth (Z) | 90 ± 30 mm (additional 30 mm with eFOV) |
| Laser line width | 80 mm (At mid-field) |
