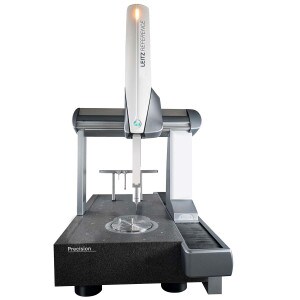

Hexagon Leitz Reference Precision w/ fixed probe
Product Information
Description
Leitz Reference Precision combines high accuracy and precision with outstanding high-speed scanning capabilities.
The model’s fixed scanning head ensures high, repeatable accuracy even with extra-long probe extensions and heavy styli clusters. This enables users to use high accuracy scanning across a broader range of measurement applications, including inspecting features deep within parts. In addition, a modular sensor and styli changer rack enables the selection of the best styli options for each application.
Application challenges
- Highly accurate measurement of size and form features
- Tight tolerance functional form features: Straightness, flatness, roundness, cylindricity, line/surface profile
- Filigree structures and micro geometrical features
- Measurement of special geometrical features
- Rotationally symmetric parts
- Leitz Reference Precision benefits
- High measurement system capability (Cg, Cgk, Gauge R&R)
- Maximum accuracy and repeatability, even when using long and heavy styli configurations
- Low force probing to avoid part bending or damage
- Evaluation of all geometrical gear parameters
- Non-contact measurements with chromatic white light and interferometric sensors
- Simultaneous 4-axis scanning – optical or tactile – in combination with a rotary table
Base system

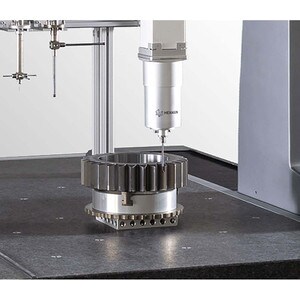

Fixed Scanning probe
High accuracy form and profile measurements with high flexibility using heavy and long styli configurations

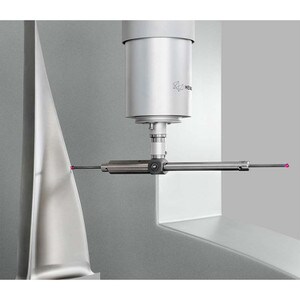

Modular sensor and styli changer rack
Uninterrupted measurements with automatic multi-styli use within a single part program to adapt to different measurement tasks

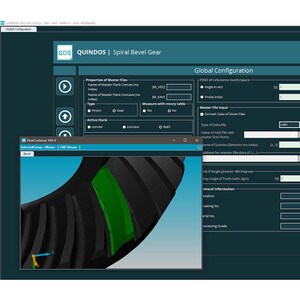

QUINDOS
An advanced metrology software for complex geometries such as gears, blades and other components with challenging features.
Specifications
- Specifications:

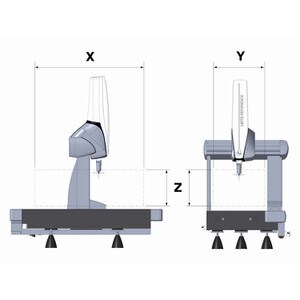

Type X (Width) Y (Depth) Z (Height)* 5.4.3 500 mm 400 mm 300 mm ** 7.7.5 700 mm 700 mm 420 - 500 mm ** 10.7.6 1000 mm 700 mm 580 - 650 mm ** 12.9.7 1200 mm 900 mm 700 mm**
560 mm***15.9.7 1500 mm 900 mm 700 mm**
560 - 640 mm ***20.9.7 2000 mm 900 mm 700 mm**
560 - 640 mm ***15.12.9 1500 mm 1200 mm 940 mm**
800 mm***22.12.9 2200 mm 1200 mm 940 mm**
800 mm***30.12.9 3000 mm 1200 mm 940 mm**
800mm ***40.12.9 4000 mm 1200 mm 940 mm**
800mm **** Values depend on selected sensor configuration
** Values for machines equipped without SENMATION
*** Values for machines equipped with SENMATION
Features
Leitz Reference CMMs are built on advanced design principles to inspire certainty and confidence. They combine quality components and state-of-the-art technologies for long-term stability, reduced measurement uncertainty, adaptability to harsh measuring environments, fast measuring point capture and an advanced user experience. These metrology solutions will provide manufacturers with maximum value over the entire lifecycle.
- Sturdy mechanical design The solid granite base with integrated dovetail guide guarantees long‑term system stability and consistent accuracy over the entire measurement volume.
- Temperature compensation Real‑time compensation of thermally caused measurement deviations through temperature sensing at the scales and on the workpiece ensures reliable measurement results.
- High-speed and safety Continuous monitoring of a defined safety area around the CMM allows worry-free high-speed measurement in CNC mode. The machine will slow down automatically when the user or an object encroaches upon the protected area.
- Bridge with triangular crossbeam Featuring an improved stiffness-to-mass ratio relative to square or rectangular traverses, this design allows for the highest dynamics and high‑speed measurements.
- Extended temperature operating range (option) Measure your components with more resistance to environmental influences. An extended temperature operating range (15 - 30°C) allows the CMM to operate closer to the production line without needing a costly climate room.
- Multi-sensor versatility Using the widest range of tactile and optical sensors with Hexagon’s universal sensor interface, the CMM becomes a multi-sensor inspection device that can adapt to the most complex measuring tasks.
- Preloaded air bearings on all axes Contactless, low-friction and low-wear axis motion ensures fast and repeatable positioning at all speeds and accelerations, resulting in low measuring uncertainties.
- Real-time environmental monitoring (option) PULSE enables the user to monitor and log any environmental conditions surrounding the CMM and receive real‑time machine information.
- Future-ready concept The future‑ready pre‑cabling enables easy adaptation of the CMMs to future measurement tasks without costly downtime. A range of adaptability options can be flexibly selected during initial CMM configuration or set up later as upgrades.
- Low-maintenance belt drive system Flat and V-ribbed belts ensure smooth and low-vibration axis motion.
- Messaging lights Messaging lights give operators the ability to monitor the machine’s status even from a distance, to optimize time and resource management.
