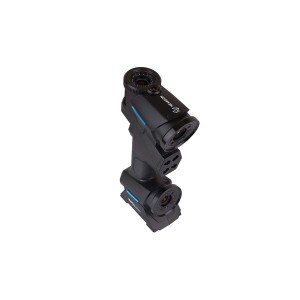

Hexagon MARVELSCAN handheld 3d scanner
Product Information
Description
Seamless scanning that adapts to your workflows
Change scanning modes directly from the handheld 3D scanner happens at the touch of your fingertip, with options for larger-scale measurements, higher-definition feature inspection, hard-to-reach areas and multiple holes and slots.
Data collected by the MARVELSCAN with different 3D scanning modes is seamlessly combined within the same point cloud/mesh.
Features and benefits
Freedom of movement

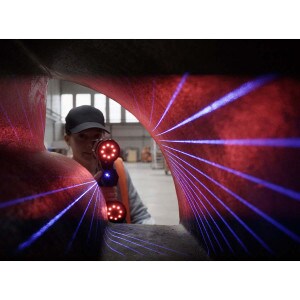

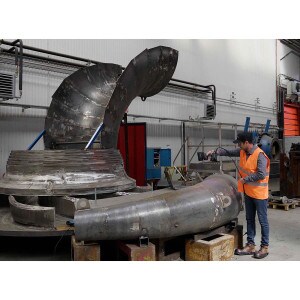

Reach into hidden areas and cavities, get the right inspection angle without line-of-sight restrictions, scan at height, at distance, on the shop floor or in the field.
Lightweight ergonomic design
Fits perfectly in the hand and light enough to take anywhere and use comfortably for long inspection projects.
Wireless Scanning Module
Set yourself free from movement-limiting cables and referencing hardware with the option of full wireless functionality.
Truly handheld scanning
Take the part in your hand and the scanner in the other for a very quick scan process that requires no complex part fixturing thanks to Dynamic Scanning.
Unstable measurement
Even challenging environment conditions with extreme noise and vibration are no problem for Dynamic Scanning.
Target-free scanning

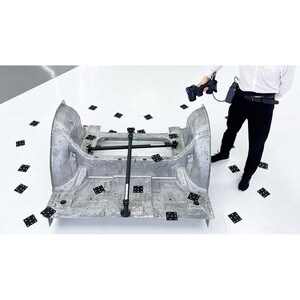

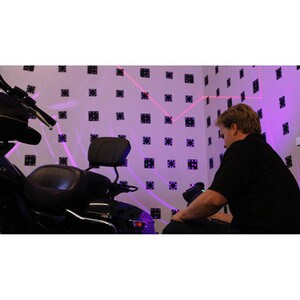

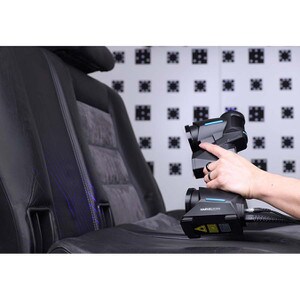

Effortlessly scan without targets on the part using photogrammetry for referencing against a target backdrop, delivering significant time savings in part preparation.
Built-in photogrammetry
Thanks to the third camera, it can be used as a standalone photogrammetry providing an all-in-one solution, scanning utilizing photogrammetry technology to enhance scanning accuracy for bigger part size.
3 scan modes
Standard, Fine and Line scanning modes let you tailor your scanner performance to the application at hand, for greater efficiency or resolution as needed.
Combine scanning mode results
Data collected with different scanning modes is seamlessly combined within the same point-cloud/mesh for ease of analysis and reporting.
Hole Flash Capture technology
Rapid simultaneous inspection of multiple circular and slotted features speeds up the workflow for a key industrial inspection challenge.
Instant visual feedback

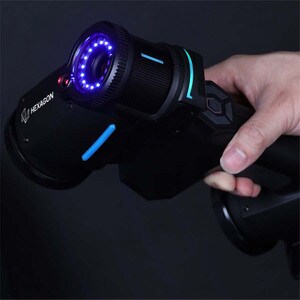

Know you’re scanning correctly without returning to the control computer with built-in LED feedback system on the handset.
Large standoff
Collect data from further away from the part, making it easier to access internal inspection areas such as tooling cavities, as well enabling automation system integration with lower collision risk.
Multi-size target recognition
Maximize efficiency by using different target sizes
(3/6/12/16mm) for different applications during the scanning process.
Change modes on-the-fly
Switch between scanning modes during measurement, directly from the handset, allowing you to fine-tune performance not just to the application but individual sections of the application.
VDI/VDE certification
Results are certified in line with the VDI/VDE 2634 to assure reliability and comparability of measurement.
Automation ready
The MARVELSCAN is ready for straightforward third-party integration within automated inspection systems.
