Hexagon PrimeScan compact precision 3d scanner
Product Information
Description
The PrimeScan optical 3D scanner line from Hexagon is an attractive entry-level solution for highly precise 3D digitisation of industrial components. Like other Hexagon structured light scanner models, the PrimeScan is based on fringe projection technology that provides the strongest luminous power and highest projection quality.

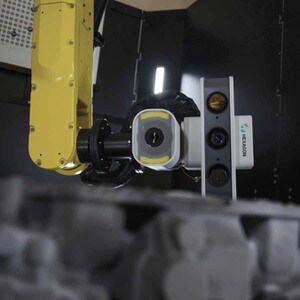

The area scanner boasts an extremely compact design, with the base area of the unit the size of an A4 sheet of paper, while it weighs less than four kilograms. This condensed layout is combined with a short working distance, making the PrimeScan the ideal device for easy and uncomplicated scanning in special application areas, such as on a desktop or in a narrow and difficult to access part of an industrial environment. The rigid design of PrimeScan also makes it suitable for use on robots.

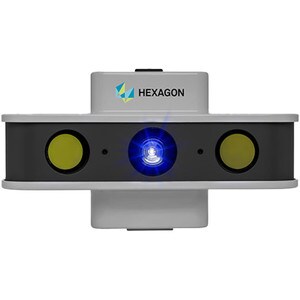

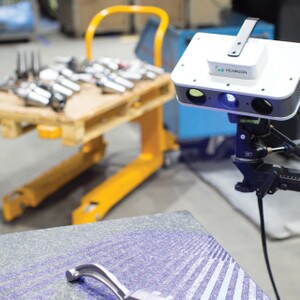

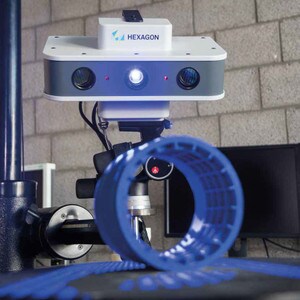

The particularly powerful projector of the PrimeScan allows for the scanning of glossy and dark surfaces without pre-treatment, while the scanner’s integrated laser pointers support the easy positioning of the measuring object. Selected robots and accessories enable both automated measurement and easy data acquisition within larger volumes.
Depending on the required resolution and precision, different camera resolutions and measuring fields are available for the PrimeScan. The white light scanner is available in eight fixed configurations, allowing users to select the perfect tool for their particular digitisation task.
Specifications
- Specifications:
PrimeScan R5 Working distance 370 mm (S) 540 mm (L) Triangulation angle 26° 18° Field of view (1) 50 mm 125 mm 200 mm 400 mm 700 mm Field of view size (2) 40 x 30 mm 100 x 80 mm 150 x 125 mm 300 x 275 mm 500 x 450 mm Measuring depth (3) 24 mm 64 mm 100 mm 200 mm 350 mm X, Y resolution (4) 16 µm 40 µm 63 µm 125 µm 208 µm Sphere spacing error 4 µm 7 µm 12 µm 20 µm 56 µm Length measuring error 10 µm 16 µm 24 µm 40 µm 112 µm Probing error size 6 µm 6 µm 6 µm 10 µm 28 µm Probing error form 4 µm 6 µm 7 µm 10 µm 28 µm SmartScan fields of view (FOV) can be used interchangeably. FOV are either delivered with the system or fitted later by Hexagon customer service.
(1) Diagonal in the center of the measuring volume.
(2) Lateral expansion (X x Y) in the center of the measuring volume.
(3) Depth of the measuring volume (Z).
(4) Calculated based on the ratio of the size of the FOV and number of pixels of the camera chip.
Features
Close-range scanning
Short working distance ideal for applications in narrow environments.
High resolution
Maximum degree of feature accuracy through high-resolution camera sensors.
Automation ready

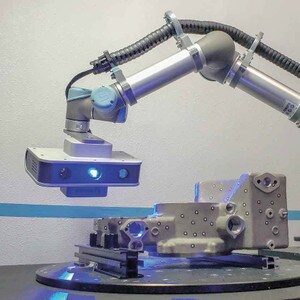

Compatible with turntable and turn-tilt units for semi-automated measurement.
Configuration options
Various fixed configurations for diverse range of measuring tasks.
Multi-surface
Scanning of glossy and dark surfaces without pre-treatment.
Combination with DPA series
Combinable with photogrammetry systems in the DPA Series for increased accuracy and capability for large-volume measurement.
Intelligent scanning
Smart Data Capture technology allows for fast acquisition and variable resolution.
Probing option
Compatible with the MI.Probe for measuring areas out of the line of sight of the scanner.
Dedicated software plug-ins
Hexagon’s structured light scanner systems allow for deep integration with the leading third-party metrology software platforms through dedicated plug-ins created using the SLS SDK.
Versatile measurement
Quick and easy exchange of measurement fields, and upgradeable modular system configuration.
Portable design
Compact, low-weight design, ideal for mobile use.
