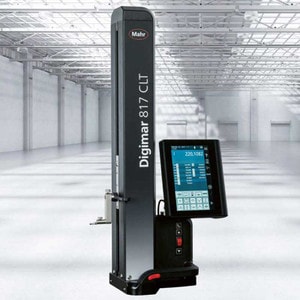

Mahr 4429602 Digimar 817 CLT 0-1000 mm (0-40 in) Height Gage

Brand: Mahr
ID#: 4429602
|MFGID: 4429602
Your Price:
$16,584.62
QuantityPrice
Add Calibration w/ Certificate?
No
  • No
  • Yes - A2LA Calibration Height Gage: Motorized - MicroHite - DigiHite - Digimar w/o Master (+ $204.00)
Request Info
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

Description

Digimar 817 CLT stands for: The simple moving and scrolling functions of the touchscreen work just like smartphone and tablet. The keys on the display are already arranged in such a way that frequently used functions are particularly easy to access. The measurements on the measuring slide can easily be started by hand via the touch display, the thumbwheel with integrated arrow keys, or using Quick mode. Two pushbuttons to actuate the air bearings are integrated into the handle enabling the device to be guided safely and sensitively by left- and right-handed operators. Regardless of whether you prefer to sit or stand while working: The touch display is always at eye level and can be rotated and tilted as required. This ensures the measuring process is particularly comfortable and relaxed.

Specifications

  • Range:0-1000 mm (0-24 in)
  • Accuracy:(1.8 + L/600)µm L in mm
  • Details:

    Easy handling The thumbwheel can be used to move the measuring slide quickly and easily start the measurement. The quick measurement function keys also automatically detect surfaces and bores.

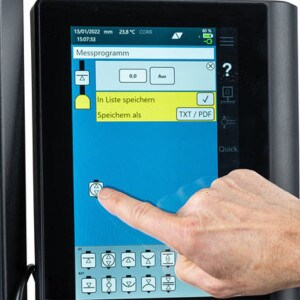

    Simple touch measurement Intuitive operation via large, clearly defined keys to ensure the safe completion on measurements, setting and calculation of functions, and the creation of measuring programs via Drag & Drop.

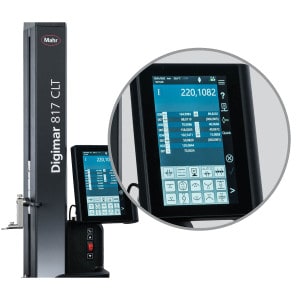

    Pivoting display 10-inch touch panel with turn/tilt joint so that it can be set individually for the work position, height of the operator, and lighting conditions.

    Best ergonomics Ergonomic handles on both sides have an integrated operating key for the air bearing ensuring the device can be moved accurately and effortlessly on the measuring plate.

  • Resolution:0.01 mm, 0.005 mm, 0.001 mm, 0.0005 mm, 0.0001 mm

OPTIONAL ACCESSORIES

ID#Product NamePrice
4102220Mahr 4102220 i-Stick Wireless USB Receiver $120.62
4221525MAHR 4221525 107 G Surface Plate, 1000 x 630, Grade 0, Din 876 $2,553.65
4221526MAHR 4221526 107 G/0 Granite Surface Plate 1200 x 800 x 150mm $4,240.38
4221573MAHR 4221573 107 UG, Stand without Cabinet for 1000 x 630 Plate $1,262.69
4221574MAHR 4221574 107 UG Stand for Plate Size 1200 x 800 x 150mm $1,620.77

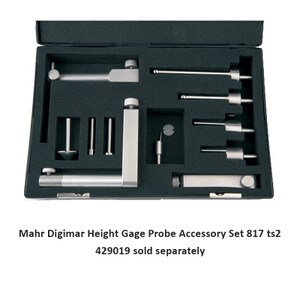

4429018Mahr Digimar Height Gage Probe Accessory Set 817 ts2 $1,215.57
4429019Mahr Digimar Height Gage Probe Accessory Set 817 ts1 $2,318.07
4429154MAHR 4429154 817 H1 Standard Probe Carrier $249.71
4429206MAHR 4429206 817 H3 Digital Probe Carrier $318.50
4429219MAHR 4429219 817 H2 Probe Carrier 817 Clm/Probe Tip Supp. Stand $311.90
4429220MAHR 4429220 817 H4 Probe Carrier 8MM Shank $247.82
4429221MAHR 4429221 Tmt 120 Depth Probe for 817 Clm/Depth Probe Tip Cpl. $405.19
4429421MAHR 4429421 Tmt 120 S Depth Probe Carrier $543.71
4429454MAHR 4429454 817 H5 Probe Carrier 817 Clm/Cyl.Holder Cpl. $329.81
5450105MAHR 5450105 M1/M2/MMq10/S2/M300 $328.93

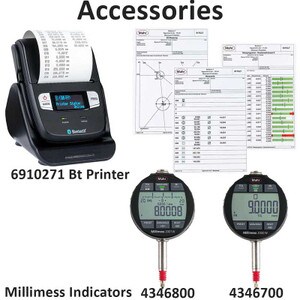

6910271MAHR 6910271 Bluetooth printer (receipt printer, 58mm) with charging station $618.15
7034000MAHR 7034000 Cxt2 Probe Kit for Cx-1, Cx-2, 816 Cl & 817 Cl $970.57

PRODUCT SERIES

ID#Product NamePrice

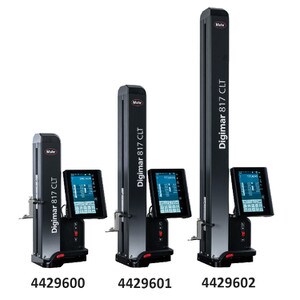

4429600Mahr 4429600 Digimar 817 CLT 0-350 mm (0-14 in) Height Gage $8,754.04
4429601Mahr 4429601 Digimar 817 CLT 0-600 mm (0-24 in) Height Gage $9,894.23
4429602Mahr 4429602 Digimar 817 CLT 0-1000 mm (0-40 in) Height Gage $16,584.62
