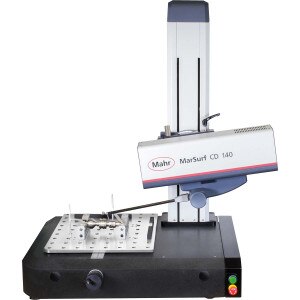

Mahr MarSurf CD 140 Contour measurement 140mm

Brand: Mahr
ID#: MarSurf CD 140
|MFGID: MarSurf CD 140
Quote Required
QuantityPrice
Request Info
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

Description

Measuring stations from the MarSurf CD series set new standards when it comes to contour testing. Shorter measuring times, flexible applications and easy handling mean greater efficiency for your quality assurance.


The new probe system combines robustness and precision. The variable contacting force even allows you to measure roughness from Rz 2 μm with the MarSurf CD. The low workpiece height and the integrated TY-adjustment also ensure a stable footing. Measuring stations from the MarSurf CD series therefore deliver reliable and precise results, even when used close to production. The low contacting error of 0.75 μm allows for minimal production tolerances.


Variety of applications for our products

Mechanical engineering

Bearings, threads, threaded rods, ball spindles, shafts, racks


Measurements close to production

Semi-automatic contour measurement


Automative Industry

Steering, brake system, transmission, crankshaft, camshaft, cylinder head


Medical technology

Contour of the hip and knee endoprostheses, contour on medical screws, contour on dental implants

Specifications

  • Specifications:
    MarSurf CD 140 | Art. no. 6269000
    Resolutionmax. 6 nm (with 210 mm probe arm)
    Start of traversing length (in X)0.1 mm
    End of traversing length (in X)140 mm
    Positioning speedX: 0.02 mm/s to 200 mm/s
    Z: 0.02 mm/s to 50 mm/s
    Traversing lengths0.1 mm to 140 mm
    Guide deviation0.35 µm / 60 mm
    0.40 µm / 140 mm


    Contact Product Expert

Features

Speedy measurements and changeover

  • Short measuring times thanks to high positioning and measuring speeds
  • Z-axis with full CNC-capability for automated operation
  • Quickly change the probe system without tools thanks to a magnetic mount – no recalibration required
  • Automatic probe arm detection speeds up measuring sequences and prevents measurement errors


Flexible and versatile

  • Workpiece support plate can hold even large workpieces
  • Large measuring range for a variety of applications – 70 mm as standard, maximum 100 mm by using extra long probe arms
  • Maximum handling flexibility thanks to support plate with 50 mm bore dimension and plug-in guide stops
  • Wide range of probe arms and accessories
  • Optional roughness measurement from Rz 2 µm possible
