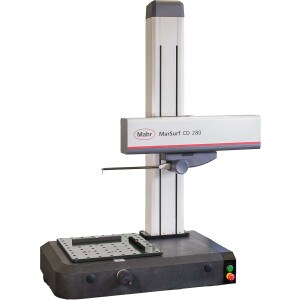

Mahr MarSurf CD 280 Contour measurement 280mm
Product Information
Description
Measuring stations from the MarSurf CD series set new standards when it comes to contour testing. Shorter measuring times, flexible applications and easy handling mean greater efficiency for your quality assurance.
The new probe system combines robustness and precision. The variable contacting force even allows you to measure roughness from Rz 2 μm with the MarSurf CD. The low workpiece height and the integrated TY-adjustment also ensure a stable footing. Measuring stations from the MarSurf CD series therefore deliver reliable and precise results, even when used close to production. The low contacting error of 0.75 μm allows for minimal production tolerances.
Variety of applications for our products
Mechanical engineering
Bearings, threads, threaded rods, ball spindles, shafts, racks
Measurements close to production
Semi-automatic contour measurement
Automative Industry
Steering, brake system, transmission, crankshaft, camshaft, cylinder head
Medical technology
Contour of the hip and knee endoprostheses, contour on medical screws, contour on dental implants
Specifications
- Specifications:
MarSurf CD 280 | Art. no. 6269004 Resolution max. 6 nm (with 210 mm probe arm) Start of traversing length (in X) 0.1 mm End of traversing length (in X) 280 mm Positioning speed X: 0.02 mm/s to 200 mm/s
Z: 0.02 mm/s to 50 mm/sTraversing lengths 0.1 mm to 280 mm Guide deviation 0.35 µm / 60 mm
0.40 µm / 140 mm
0.75 µm / 280 mmMeasuring force (N) 4 mN to 30 mN, adjustable via software Measuring speed 0.02 mm/s to 10 mm/s Probe Contour probe system Probe arm length 210 mm
350 mm
490 mmWeight (gross) 200 KG Workpiece weight max. 90 kg Measuring range mm 70 mm with probe arm 350 mm long
max. 100 mm with 490 mm long probe arm
Features
Speedy measurements and changeover
- Short measuring times thanks to high positioning and measuring speeds
- Z-axis with full CNC-capability for automated operation
- Quickly change the probe system without tools thanks to a magnetic mount – no recalibration required
- Automatic probe arm detection speeds up measuring sequences and prevents measurement errors
Flexible and versatile
- Workpiece support plate can hold even large workpieces
- Large measuring range for a variety of applications – 70 mm as standard, maximum 100 mm by using extra long probe arms
- Maximum handling flexibility thanks to support plate with 50 mm bore dimension and plug-in guide stops
- Wide range of probe arms and accessories
- Optional roughness measurement from Rz 2 µm possible
