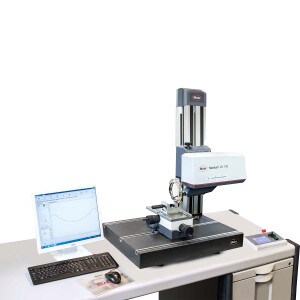

Mahr MarSurf LD 130 Surface and Roughness 130mm
Brand: Mahr
ID#: MarSurf LD 130
Product Information
Description
Highest precision for roughness and contour with a 130 mm measuring path.
Combined contour and roughness measurements in just one step comes courtesy of proven cutting-edge technology from Mahr metrology.
The MarSurf LD 130 and MarSurf LD 260 measuring stations have been systematically developed to draw on the experience from the first generation of equipment.
Measuring tasks in different applications increasingly require the determined contour and roughness depth to be combined. The measuring instruments must demonstrate enormous measuring performances to meet these requirements.
Resolutions in the sub-nanometer range and residual noise of <20 nm Rz are just some of the required basic conditions.
Specifications
- Specifications:
MarSurf LD 130 | Art. no. 6720821 Resolution 0.8 nm Start of traversing length (in X) 0.1 mm End of traversing length (in X) 130 mm Positioning speed 0.02 mm/s to 200 mm/s Traversing lengths 0.1 mm to 130 mm Guide deviation 0.10 μm / 60 mm
0.20 μm / 130 mmMeasuring force (N) 0.5 mN to 30 mN, software adjustable Measuring speed 0.02 mm/s to 10 mm/s Probe Combined roughness and contour probe system Probe arm length 100 mm; 150 mm; 200 mm Weight (gross) 23 KG Measuring range mm 13 mm (100 mm probe arm)
26 mm (200 mm probe arm)
Features
Product Information
- Roughness and contour in one step
- High measuring and positioning speed minimizes measuring times dramatically
- Innovative probe system solution
- Quick and reliable replacement of the probe arms with simultaneous probe arm detection by magnetic holder
- Long measuring length up to 130 mm
- Modular construction for ease of maintenance
