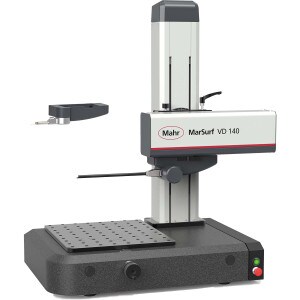

Mahr MarSurf VD 140 Roughness and Contour 140mm
Product Information
Description
A particular feature of the MarSurf VD is the highly accurate contour and roughness measurement using one system. Simply replace the roughness measuring system and complete highly accurate roughness measurements.
The MarSurf VD is a precision product offering the highest speed and flexibility. An improved floor to floor time of up to 65 % provides convincing proof of the speed. The flexibility is highlighted by the large measuring range, the workpiece flexibility (even up to 80 kg) and simple clamping system. It also supports the repeatability and therefore also accuracy.
Variety of applications for our products
Mechanical engineering
Bearings, threads, threaded rods, ball spindles, shafts, racks
Measurements close to production
Semi-automatic contour measurement
Automative Industry
Steering, brake system, transmission, crankshaft, camshaft, cylinder head
Medical technology
Contour of the hip and knee endoprostheses, contour on medical screws, contour on dental implants
Specifications
- Specifications:
MarSurf VD 140 | Art. no. 6269020 Resolution with roughness probe system:
Measuring range 1: 2.0 nm
Measuring range 2: 0.2 nm
with contour probe system:
max. 6 nm (with 210 mm probe arm)Start of traversing length (in X) 0.1 mm End of traversing length (in X) 140 mm Positioning speed X: 0.02 mm/s to 200 mm/s
Z: 0.02 mm/s to 50 mm/sTraversing lengths 0.1 mm to 140 mm Guide deviation with roughness probe system:
0.20 µm / 60 mm
0.40 µm / 140 mm
0.75 µm / 280 mmMeasuring force (N) with roughness probe system:
0.7 mN
4 mN to 30 mN, adjustable via softwareMeasuring speed 0.02 mm/s to 10 mm/s Probe Roughness probe system (skidless)
Contour probe systemProbe arm length with roughness probe system:
45 mm to 135 mm
with contour probe system:
210 mm to 490 mmWeight (gross) 200 KG Workpiece weight max. 90 kg Measuring range mm with roughness probe system:
500 µm (±250 µm) for probe arm length 45 mm
1500 µm (±750 µm) for probe arm length 135 mm
with contour probe system:
70 mm with probe arm length 350 mm
max. 100 mm with probe arm length 490 mm
Features
All machines in the MarSurf family run on a common platform.
- Short measuring times thanks to high axis speeds and automated measuring sequences
- Simple, fast mounting, and changeover thanks to innovative clamping system
- Magnetic mount for changing the probe arm quickly without the need for tools
- Spacious support plate and large measuring range: ideal for measuring large workpieces
Changing the probe system without tools
The optimized probe systems allows you to achieve highly accurate roughness and contour measurements using a single measuring station:
- Changes during operation reduce changeover times
- Roughness measurement using the contour probe system can be achieved with very high measuring range at the same time
- High level of security thanks to digital interface
- Changing the probe system ensures highly accurate roughness measurements are possible
