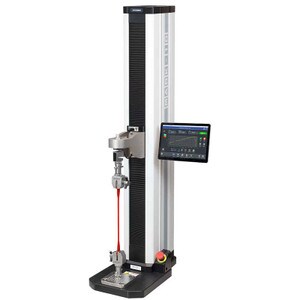

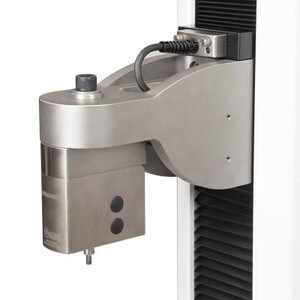

Mark-10 F755-IM Test frame w/ IntelliMESUR® soft, single license, vert, 750 lbF / 3.4 kN
Brand: Mark-10
ID#: F755-IM
Free Shipping
Product Information
Description
| Speed range: | 0.001 - 60 in/min [0.02 - 1,525 mm/min] | 0.001 - 70 in/min [0.02 - 1,800 mm/min] | ||
| Load accuracy (% of full scale) |
| |||
| Speed setting accuracy: | ±0.2% | |||
| Load sampling rate: | 20,000 Hz | |||
| Data acquisition rate: | 1,000 Hz | |||
| Speed accuracy: | ±0%, stepper motor driven | |||
| Distance accuracy: | ±0.002 in [0.05 mm], factory-compensated at up to full load | |||
| Distance resolution: | 0.0005 in [0.01 mm] | |||
Specifications
- Details:
Advanced Test Frames
This family of force testers is designed for tension and compression force testing applications, with force capacities up to 1,500 lbF (6.7 kN). Select from a broad range of force sensor capacities and an expansive array of grips and fixtures.
Set up tests, record data, and analyze data via IntelliMESUR® software. From basic tests to multi-step sequencing, IntelliMESUR® is fully integrated with Series F systems. Select from a pre-configured tablet control panel or standalone software for your own Windows device.
Info and Guides
OPTIONAL ACCESSORIES
PRODUCT SERIES
| ID# | Product Name | Price |
|---|---|---|
| F1505-IM | Mark-10 F1505-IM Test frame w/ IntelliMESUR® soft, single license, vert, 1,500 lbF / 6.7 kN | $14,877.00 Free Shipping |
| F1505S-IM | Mark-10 F1505S-IM Test frame w/ IntelliMESUR® soft, sngl lic, vert, short, 1,500 lbF / 6.7 kN | $14,240.50 Free Shipping |
| F755-IM | Mark-10 F755-IM Test frame w/ IntelliMESUR® soft, single license, vert, 750 lbF / 3.4 kN | $13,566.00 Free Shipping |
| F755S-IM | Mark-10 F755S-IM Test frame w/ IntelliMESUR® soft, sngl lic, vert, short, 750 lbF / 3.4 kN | $12,891.50 Free Shipping |
