Mark-10 MR06-200 Handheld Wire Crimp Pull Tester

by Mark-10
ID#: MR06-200-MRK
|MFGID: MR06-200
Your Price:
$1,420.25
  • Retail Price: $1,495.00
  • Your Savings: 74.75
Usually Ships in 2 Business Days
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

Description

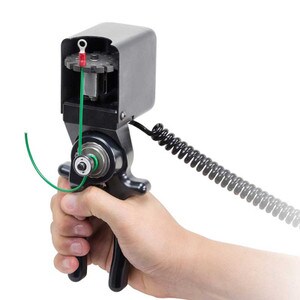

Mark-10 MR06-200 wire crimp pull sensor is a hand-operated solution for measuring wire crimp pull-off forces. The ergonomic handles and convenient tension mechanism make field measurements a breeze for applications up to 200 lbF -1,000 N-. Squeeze the handles together to increase tension on the sample until a break occurs. The peak force is recorded by a Mark-10 indicator. A rotating turret with slots of multiple sizes accommodates a wide range of wire diameters, up to 0.25 in. -6.4 mm-.
REQUIRES INDICATOR such as 7i, 5i, or 3i SOLD SEPARATELY

Specifications

  • Accuracy:Requires Indicator Sold Separately
  • Details:
    • Member of the Plug & Test™ family of interchangeable sensors and indicators
    • Ergonomic handles and convenient tensioning mechanism
    • Measures pull forces
    • NIST-traceable certificate of calibration with data included
    • Accuracy: ± 0.5% of full scale + indicator
    • Weight: 2.5 lb [1.2 kg]
    • Slot dimensions -in [mm]-: 0.03 [0.8], 0.05 [1.3], 0.06 [1.5], 0.08 [2.0], 0.09 [2.3], 0.11 [2.8], 0.13 [3.3], 0.14 [3.6], 0.16 [4.1], 0.17 [4.3], 0.19 [4.8], 0.20 [5.1], 0.22 [5.6], 0.24 [6.1], 0.25 [6.4]
    • Warranty: 3 years
