Mark-10 MTT03-12 Torque Gauge
Brand: Mark-10
ID#: MTT03-12-MRK
Free Shipping
Product Information
Description

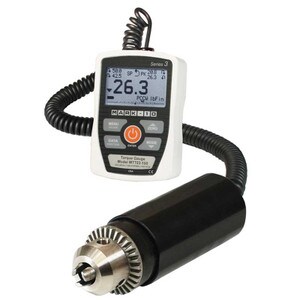

Mark-10 MTT03-12 Torque gauge 12 lbFin / 140 kgFmm / 135 Ncm. Mark-10 MTT03-12 TT03 digital torque gauges are designed for clockwise and counter-clockwise torque testing applications in virtually every industry, with capacities from 10 ozFin to 100 lbFin -7 to 1,150 Ncm-. A dedicated remote torque sensor with Jacobs chuck can be used to grip a sample, bit, or fixture. The gauges’ rugged aluminum housing allows for hand-held use or test stand mounting for more sophisticated testing requirements.Specifications
- Range:12 lbFin / 140 kgFmm / 135 Ncm
- Type:Digital Torque
- Accuracy:±0.5% of full scale
- Details:Ergonomic torque sensor with Jacobs chuck
Peak torque values saved and displayed
High-speed 2,000 Hz sampling rate
USB data output of continuous or individual data points
Programmable set points with pass/fail indicators
Live load bar graphs with set point markers
Peak memory for clockwise and counter clockwise readings
Set points always displayed
Configurable audio alarms and key tones
MESUR™ Lite data collection software included
Battery or AC operation
Safe overload: 150% of capacity
CE mark
