Metrios-Cross-Sliding-Stage Optical Measuring Machine
Product Information
Description

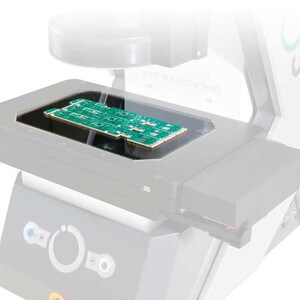

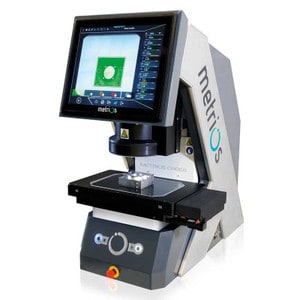

METRIOS Cross Optical Measuring Machine is equipped with a sliding stage. Wide working area and high resolution for large components up to 265 x 200 mm. Ideal for assembled elements, automotive components, electrical components, milled elements, and suitable for multi-piece. Also available in HD.
The Cross Range combines high resolution with wide fields of view - ideal for large parts and multi-piece measurements. Metrios Cross offers the highest resolution and automatic focus across the full measuring field, so that even the smallest details and parts requiring a different focus position can be captured.
Specifications
- Specifications:
Metrios Cross
Field of view: 265 x 200 mm, Max piece size on Z axis: 80 mm, Max weight: 5.0 Kg, Accuracy: (5+0.01L [mm]) [µm], Repeatability: (2+0.01L [mm]) [µm]Metrios HD Cross
Field of view: 70 x 70 mm, Max piece size on Z axis: 80 mm, Max weight: 3.0 Kg, Accuracy: (2,5+0.01L [mm]) [µm], Repeatability: (1,5+0.01L [mm]) [µm]
Features
SPEED Takes even complex measurements in a matter of seconds. Distances, radii, diameters, angles, straightness, roundness, as well as elements constructed on virtual lines.

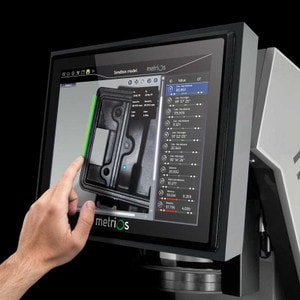

INTUITIVE A simple, intuitive click provides all the measurements required.
OBJECTIVITY Consistent results unconditioned by the operator.
TRACEABILITY Automatic data saving and instant measurement reports.
CUSTOMIZED In-house software development to meet the users’ requirements.
